Copystar CS-3035 - Construction of each Section

3CP
2-1-1
2-1-1 Construction of each section
The switchback unit consists of the parts shown in Figure 2-1-1 and performs switchback operation for switching the
ejection side of paper when ejecting paper to the saddle finisher.

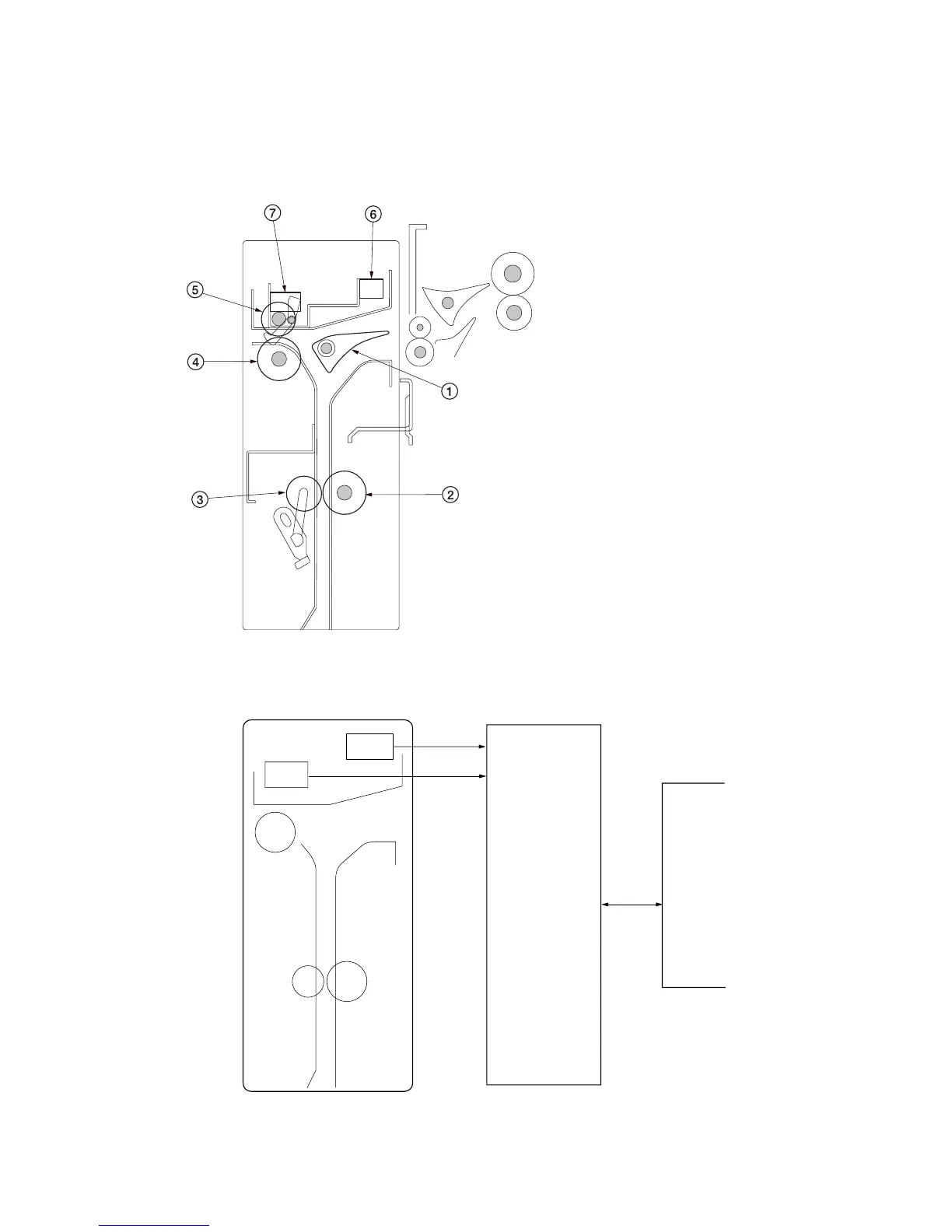

Figure 2-1-1 Switchback unit
Figure 2-1-2 Switchback unit block diagram
1 Feedshift guide
2 Switchback press roller
3 Switchback press pulley
4 Switchback eject roller
5 Switchback eject pulley
6 Switchback feed in switch
7 Switchback eject switch
CN5-3
CN5-4
CN1-1-
CN1-12
SBESW
SBFISW
MPCB
Copier
