Copystar CS-3035 - Electrical Parts Layout

3CX
2-2-1
2-2-1 Electrical parts layout

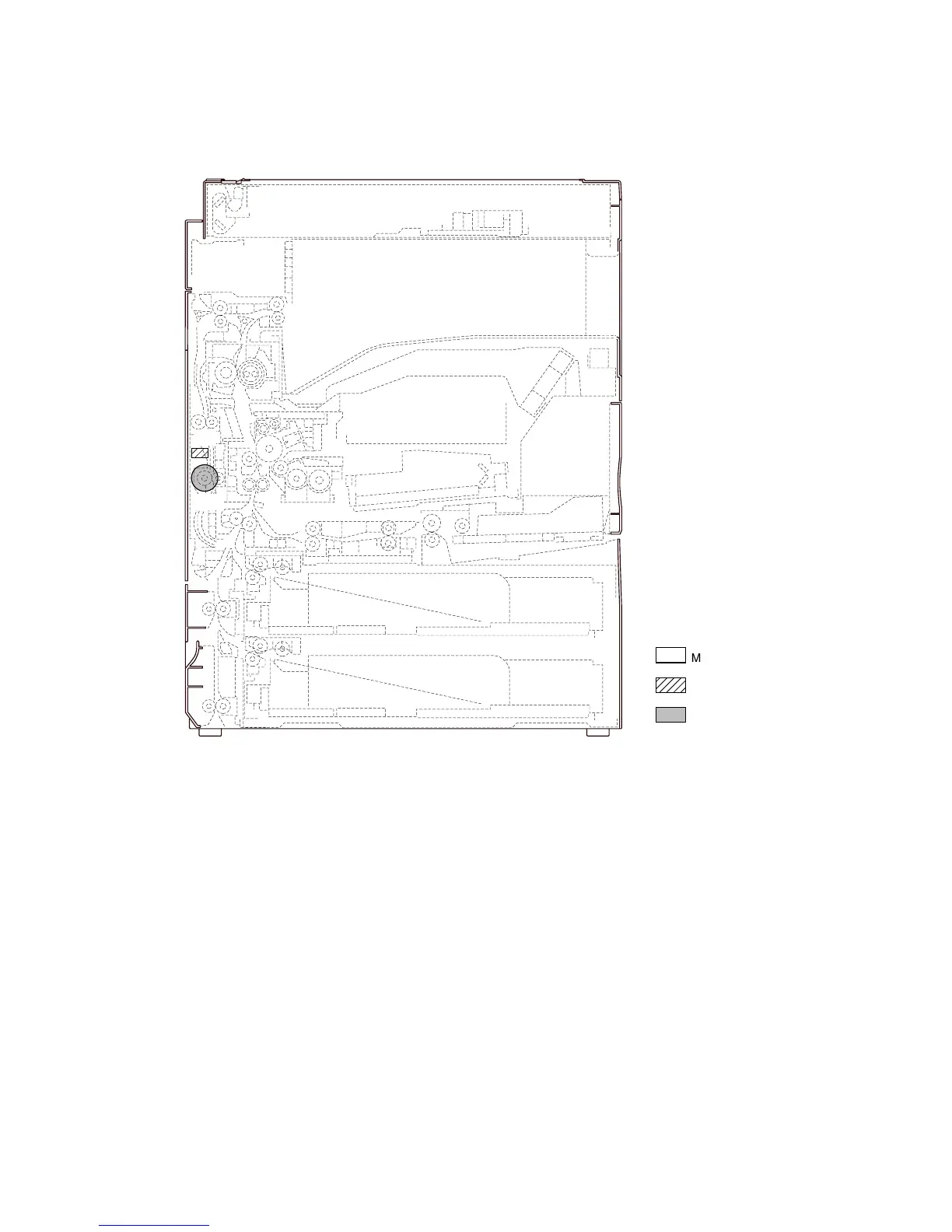

Figure 2-2-1 Duplex unit
1. Duplex paper conveying switch
(DUPPCSW) ................................................ Detects a paper jam in the duplex unit.
2. Duplex paper feed clutch
(DUPFCL) .................................................... Controls the drive of the duplex feed roller.
2
1
;
Machine front
Machine inside
Machine rear
