Copystar CS-3035 - Electrical Parts Layout; Paper Conveying Section

3B5
2-2-1
2-2-1 Electrical parts layout
(1) Paper conveying section

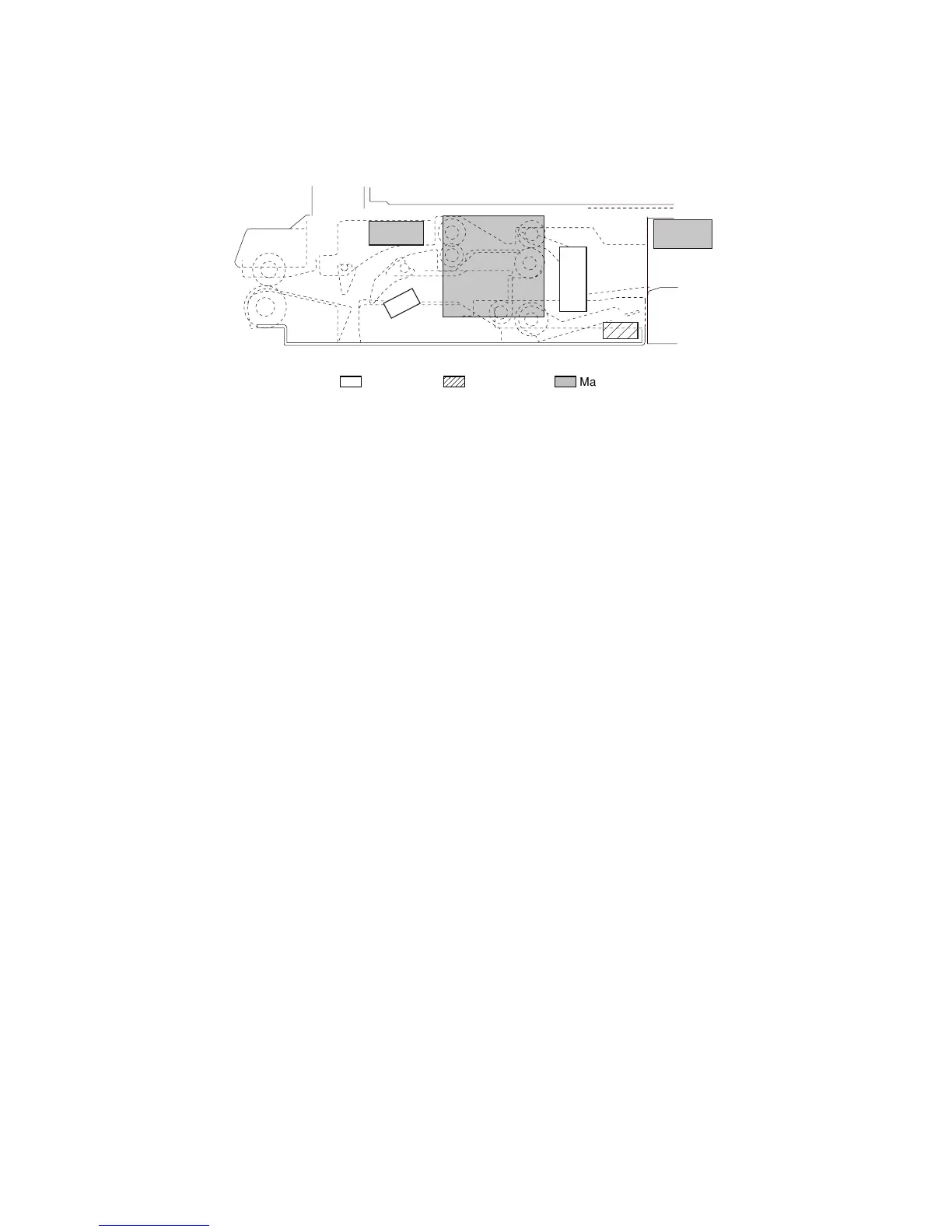

Figure 2-2-1 Paper conveying section
1. Paper conveying motor (PCM) .................... Drives the paper conveying section.
2. Paper conveying switch (PCSW) ................. Detects a paper jam in the finisher.
3. Feedshift solenoid (FSSOL) ........................ Operates the feedshift guide of the copier.
4. Pickup solenoid (PUSOL) ............................ Operates the press roller.
5. Tray open/close switch (TOCSW) ................ Detects if the intermediate tray is opened or closed.
6. Cooling fan motor (CFM) ............................. Cools the stapler section.
6
3
2
1
4
5
Machine front
Machine inside
;;
Machine rear
