3B6
1-3-1
1-3-1 Paper misfeed detection
(1) Paper misfeed indication
When paper jams, the machine immediately stops operation and the occurrence of a paper jam is indicated on the copier
operation panel.
To remove the jammed paper, open the copier conveying cover.
To reset the paper misfeed detection, open and close the copier conveying cover to turn safety switch 2 off and on.

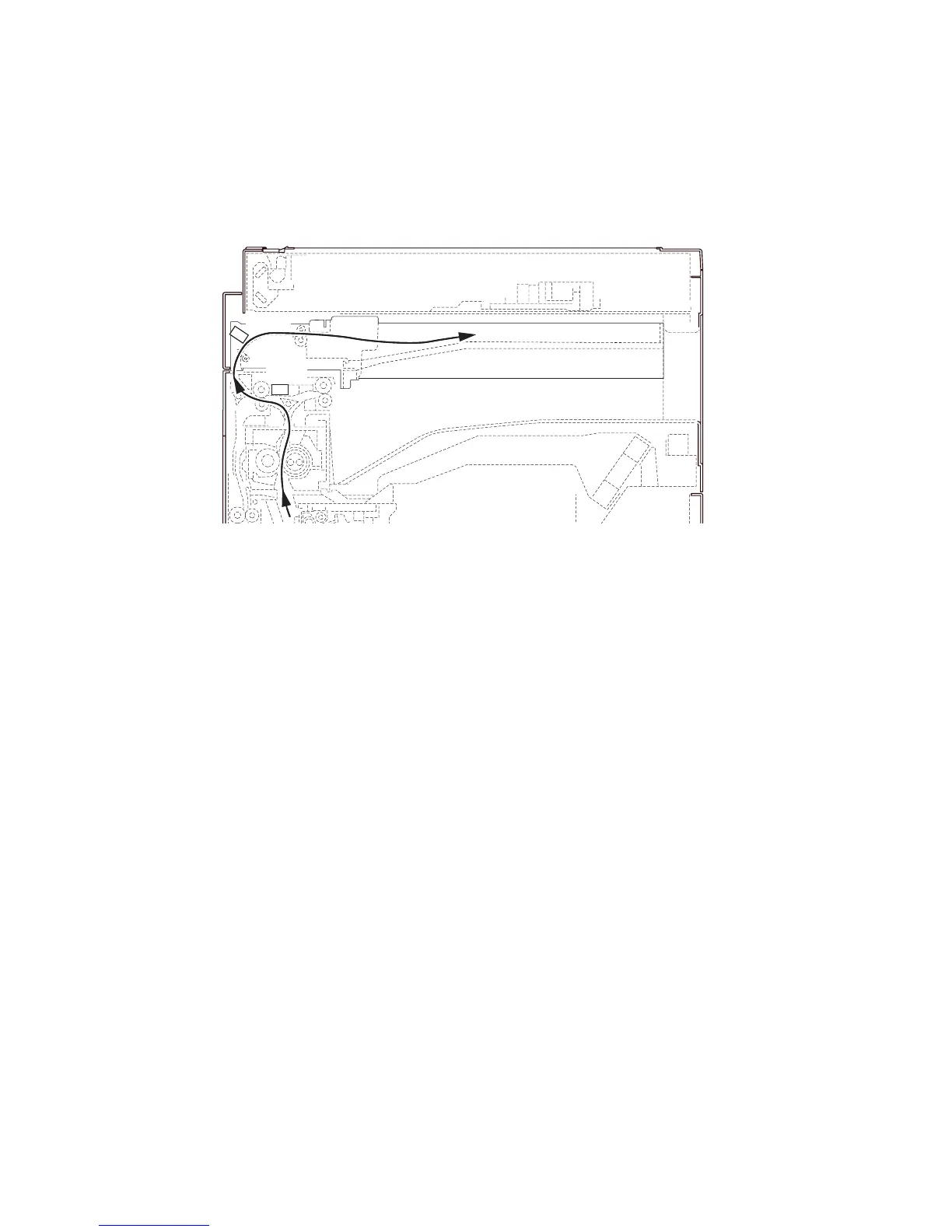

Figure 1-3-1 Paper misfeed detection
FSSW
JBESW
