Copystar CS-3035 - Stapler Section

3B5
2-2-3
;;
;;
5
1
2
3
4
;;
;
;
;
;;
;;
Machine front Machine inside
;
Machine rear
(3) Stapler section

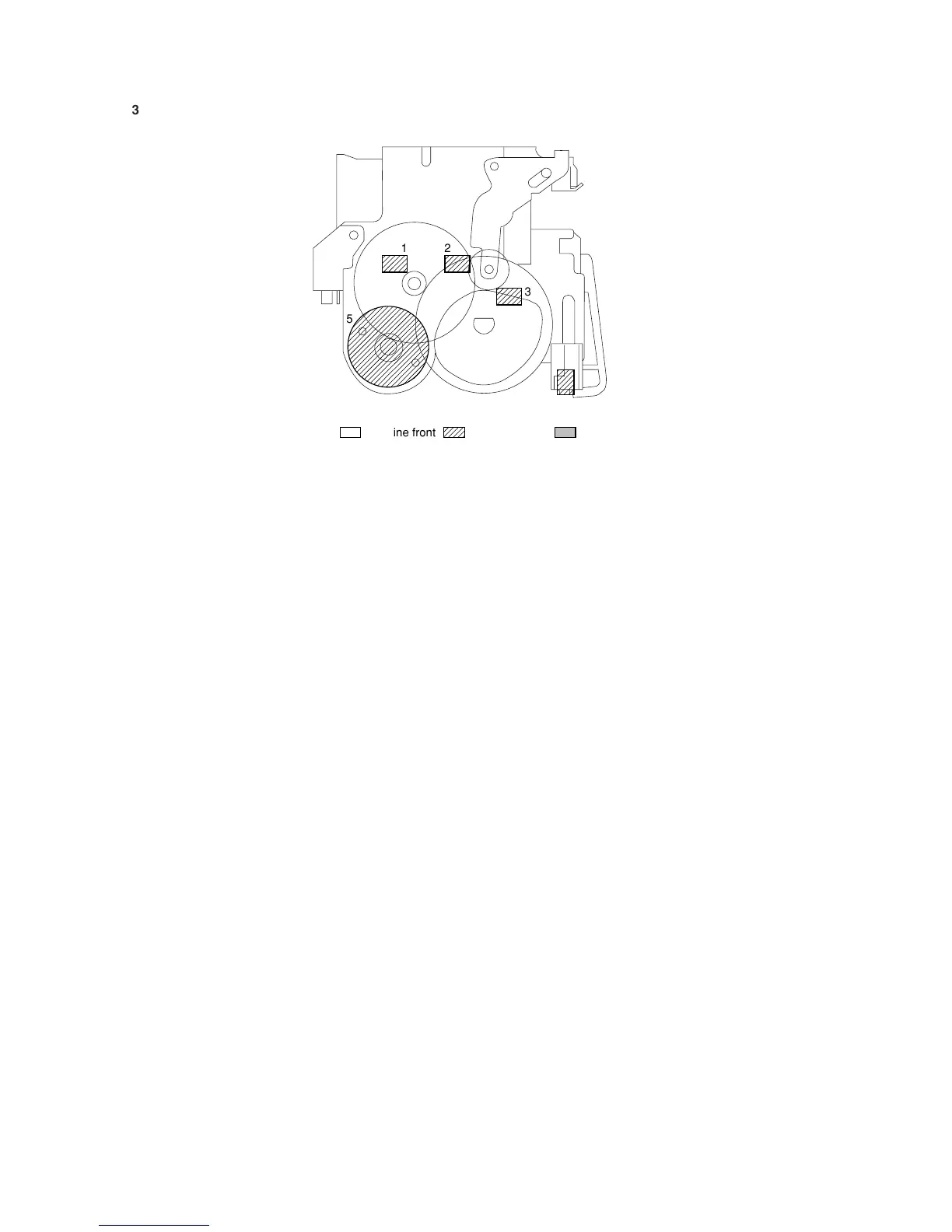

Figure 2-2-3 Stapler section
1. Stapler empty sensor (STES) ...................... Detects the presence of staples.
2. Staple cartridge sensor (STCS) ................... Detects the presence of the staple cartridge.
3. Stapler home position sensor (STHPS) ....... Detects the stapler in the home position.
4. Stapler self-priming sensor (STSPS) ........... Detects the pre-stapling state of the stapler.
5. Stapler motor (STM) .................................... Drives the stapler.
