3B5
1-3-2
(2) Paper misfeed detection condition
• Jam between the finisher and copier (jam code 81)
The paper conveying switch does not turn on within 1550 ms of the signal requesting paper ejection is output from the
copier.
• Intake jam (jam code 82)
During paper intake from the copier, the paper conveying switch (PCSW) does not turn off within 1960 to 3480 ms
(depending on paper size) of paper conveying switch (PCSW) turning on.

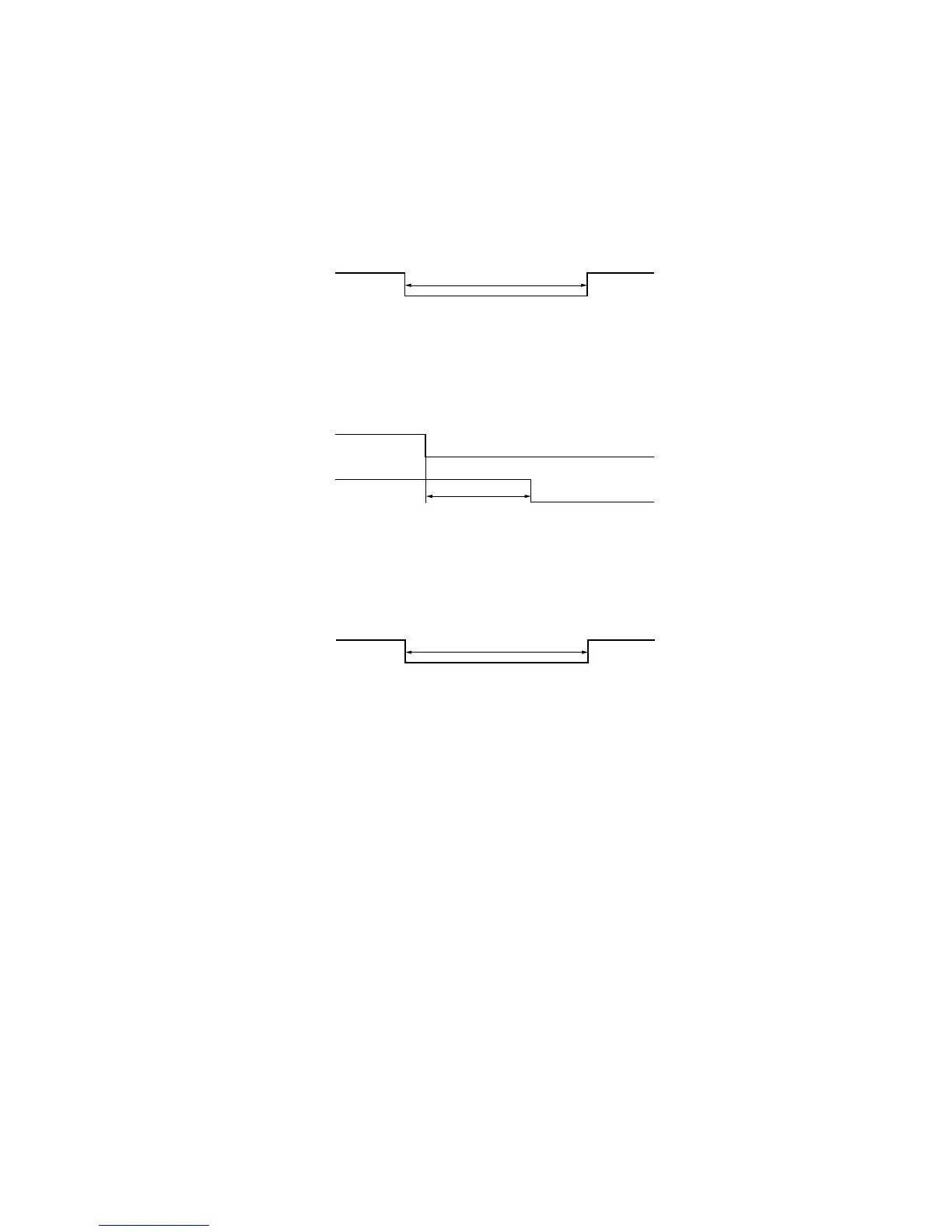

1960 to 3480 ms
PCSW
Off
On
Timing chart 1-3-1
• Jam during paper conveying for batch ejection 1 (jam code 83)
When ejection a stack of paper, the paper conveying switch (PCSW) does not turn on within 1590 ms of the paper
conveying motor (PCM) turning on.
1590 ms
PCM
PCSW
Off
On
Off
On
Timing chart 1-3-2
• Jam during paper conveying for batch ejection 2 (jam code 84)
When ejection a stack of paper, the paper conveying switch (PCSW) does not turn off within 2260 to 3190 ms (depending
on the paper size) of the paper conveying motor (PCM) turning on.
2260 to 3190 ms
PCSW
Off
On
Timing chart 1-3-3
