Copystar CS-3035 - Paper Feed Section; Detaching and Refitting the Upper and Lower Deck Separation Rollers

5FF
1-4-2
1-4-2 Paper feed section
(1) Detaching and refitting the upper and lower deck separation rollers
Clean or replace the upper and lower deck separation rollers as follows.
Procedure
1. Open the deck side cover.
2. Remove stop ring 1.
3. Remove the shaft.
4. Remove the lower deck separation roller
assembly.
5. Remove stop ring 2 securing the lower deck
separation roller and then the roller.
6. Remove stop ring 3 securing the upper deck
separation roller and then the roller.
7. Clean or replace the upper and lower deck
separation rollers.
8. Refit all removed parts.

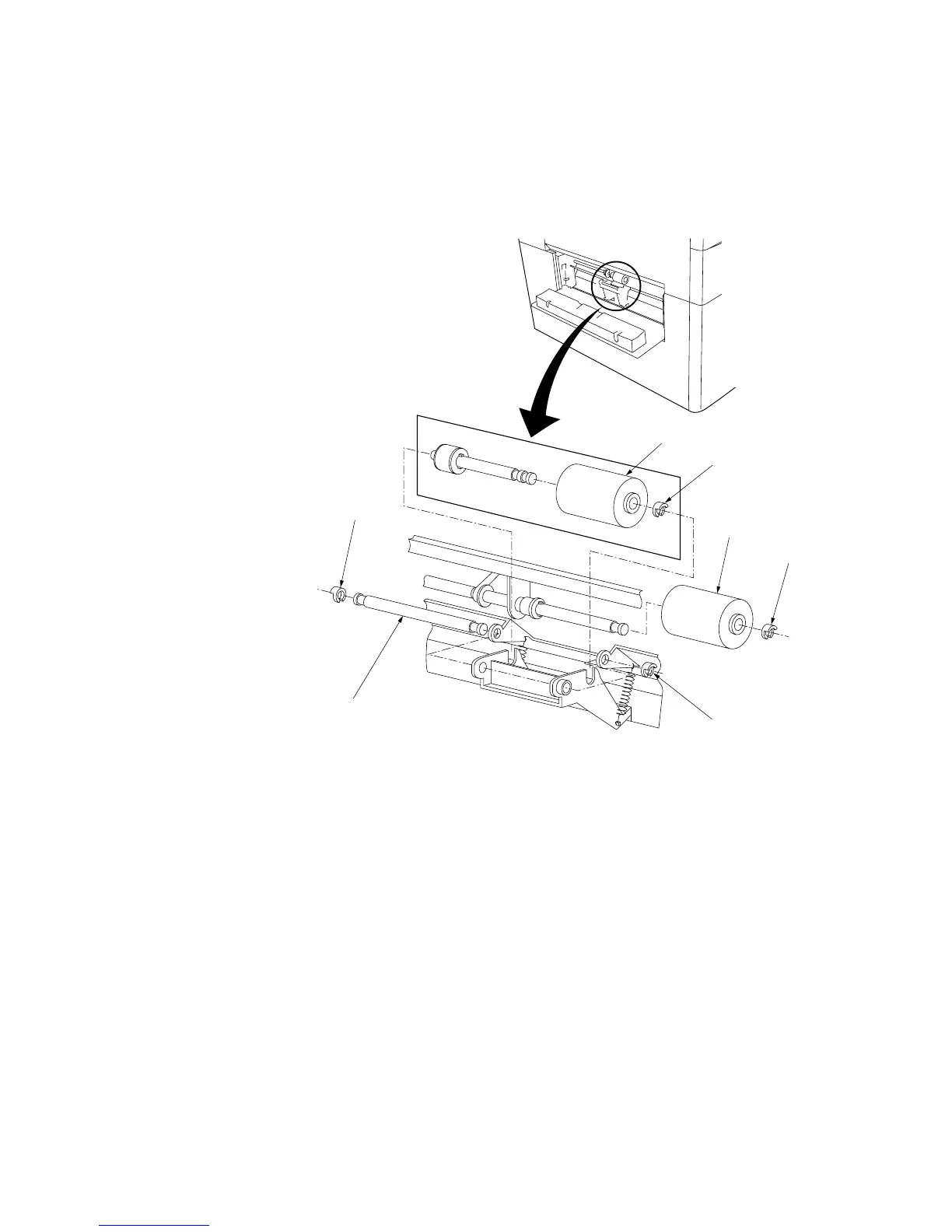

Figure 1-4-1 Detaching and refitting the upper and lower
deck separation rollers
Stop ring 1
Shaft
Lower deck separation roller
Stop ring 2
Upper deck
separation roller
Stop ring 3
Stop ring 1
Lower deck separation roller assembly
