(5) Adjusting the amount of slack

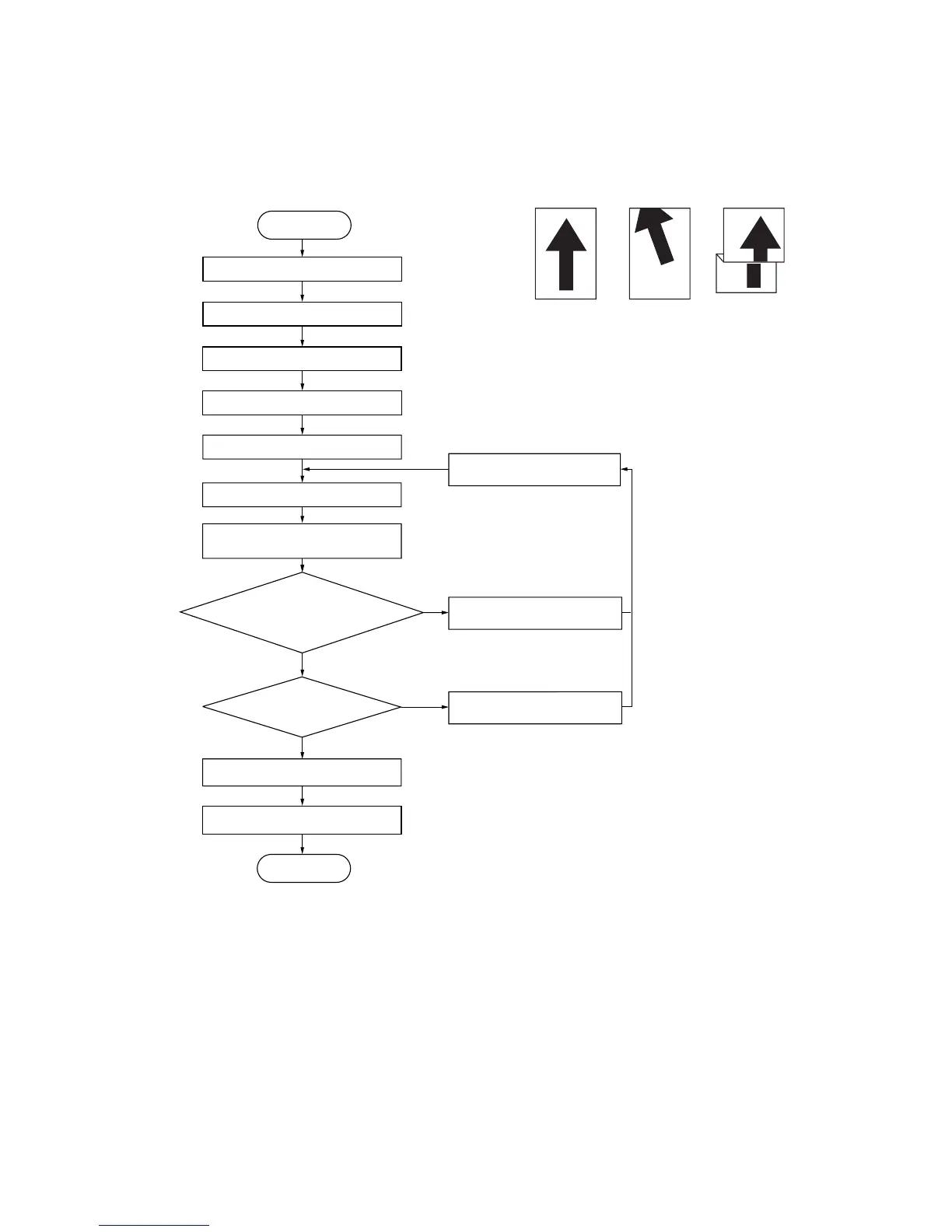

Perform the following adjustment if the leading edge of the copy image is missing or varies randomly, or if the copy paper is
Z-folded.
Procedure
Original Copy
example 1
Copy
example 2
Figure 1-4-16
End
Yes
Yes
No
No
Press the interrupt key.
Press the start key
to make a test copy.
Is the leading edge
of the image missing or varying randomly
(copy example 1)?
Is the copy paper
Z-folded (copy example 2)?
Press the stop/clear key.
Exit maintenance mode.
Decrease the value using
the cursor lower key.
Increase the value using
the cursor upper key.
Press the start key.
Setting range: 0 – 255
Changing the value by 1 changes
the amount of slack by 0.67 mm
Reference: 0
The greater the value, the larger
the amount of slack;
The smaller the value, the smaller
the amount of slack.
The new setting is stored.
Select the drawer to be adjusted.
Start
Enter maintenance mode.
Enter “051” using the numeric keys.
Press the start key.
Select “FEED DATA.”
To Next Page
