1-1-4 Drive system
3(6805
@
!7845 ^
4)794
2
1
$
#
^
(
&*
#
%
⁄

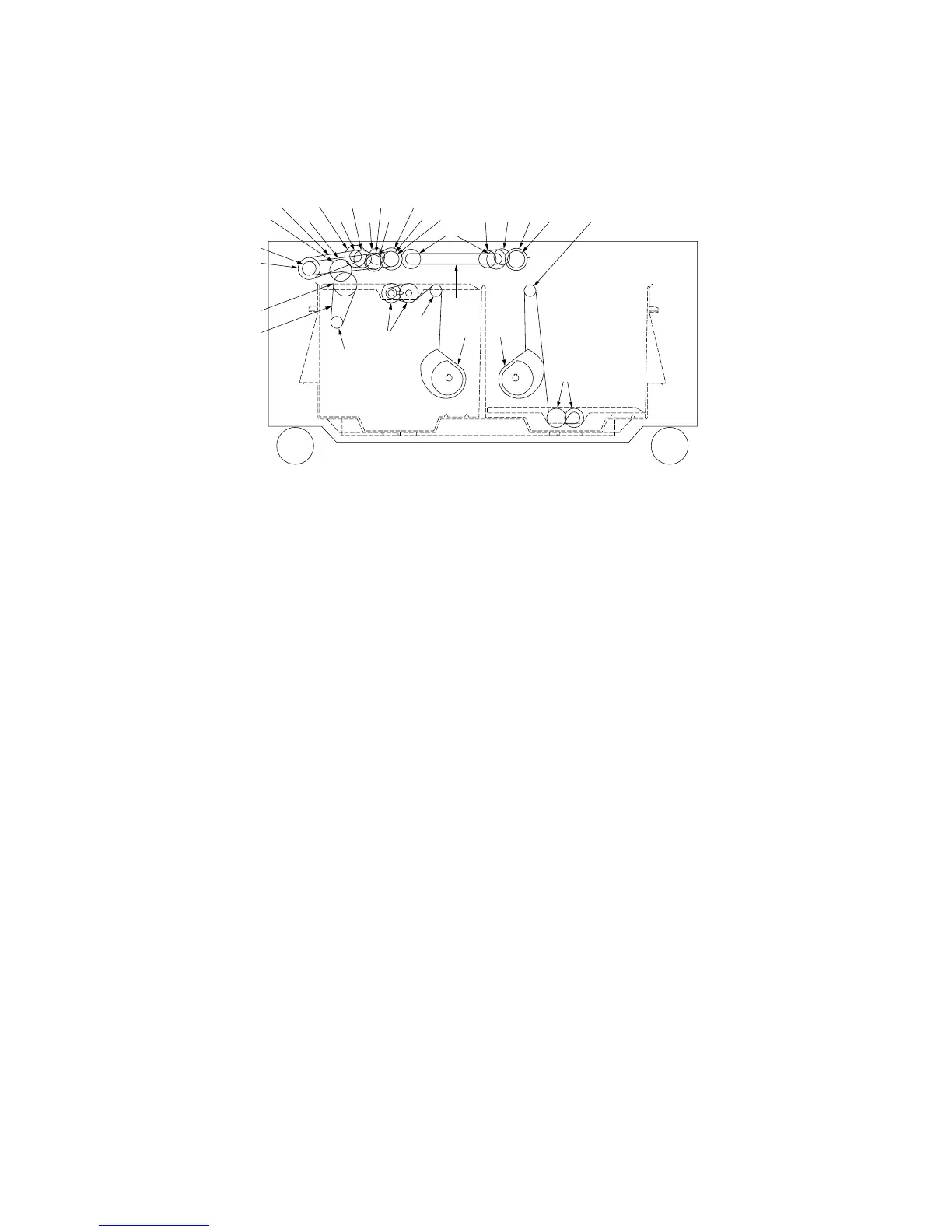

As viewed from machine front
Figure 1-1-4
1 Pulley 2M-40
2 Pulley S3M-16
3 Gear 0.8-35/1-20
4 Gear 2.6
5 Gear 0.8-23
6 Pulley 2M-18
7 Pickup roller gear 0.8-23
8 Gear 0.9-26
9 Gear 30
0 Gear 0.8-24
! Pulley 3M-18
@ Pulley 14, gear 0.8-32
# Gear 1.0-24
$ Pulley S2M-18
% Pulley 43, gear 20
^ Lift pulley
& Left lift belt assembly
* Right lift belt assembly
( Belt S3M276
) Belt 2M0950
⁄ Belt 2M0840
