3B5
2-1-1
2-1-1 Construction of each section
The paper conveying section consists of the components shown in Figure 2-1-1. It switches the path for the paper conveyed
from the copier in sort mode. Also the paper conveying section contains a curl eliminator mechanism, which reduces curling
of paper with curl eliminator rollers.

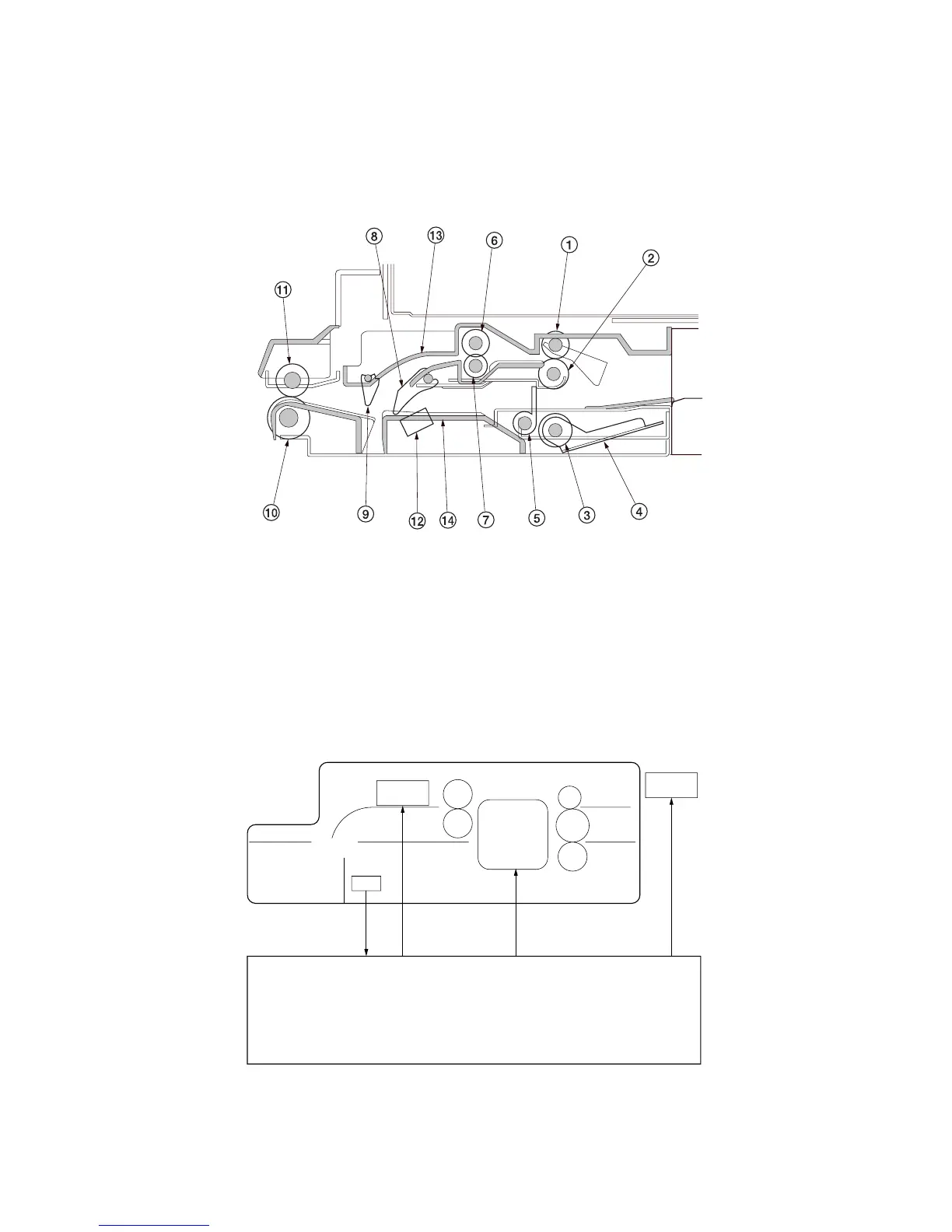

Figure 2-1-1 Paper conveying section
Figure 2-1-2 Paper conveying section block diagram
PCM
PCSW
FSSOL
PUSOL
MPCB
CN6-7-
CN6-12
CN4-10
CN4-2,4
CN4-7
1 Feedshift pulley
2 Feedshift roller
3 Press roller
4 Press roller lift
5 Stopper
6 Upper curl eliminator roller
7 Lower curl eliminator roller
8 Feedshift claw
9 Small feedshift claw
0 Eject roller
! Eject pulley
@ Paper conveying switch (PCSW)
# Upper guide plate
$ Lower guide plate
