Copystar CS-3035 - Deck Main PCB

5FF
2-3-1
2-3-1 Deck main PCB
DECK RXD
DECK TXD
FSW3 SIG
24 V DC
5 V DC
PGND
SGND
CM
PDM1
PDM2
PDM1
drive circuit
Deck paper
conveying
motor drive
circuit
Communication
circuit
Latch
CPU
(IC8)
PDMPCB
LED
drive circuit
ROM
PPSENS1
PPSENS2
PPSENS3
PESENS
DLSW1
DLSW2
SCSW
DOSSW
Oscillator
circuit
PFCL1
PFCL2
CCL
PDM2
drive circuit
Reset circuit
PLDSENS2
PLDSENS1
Clutch
drive circuit

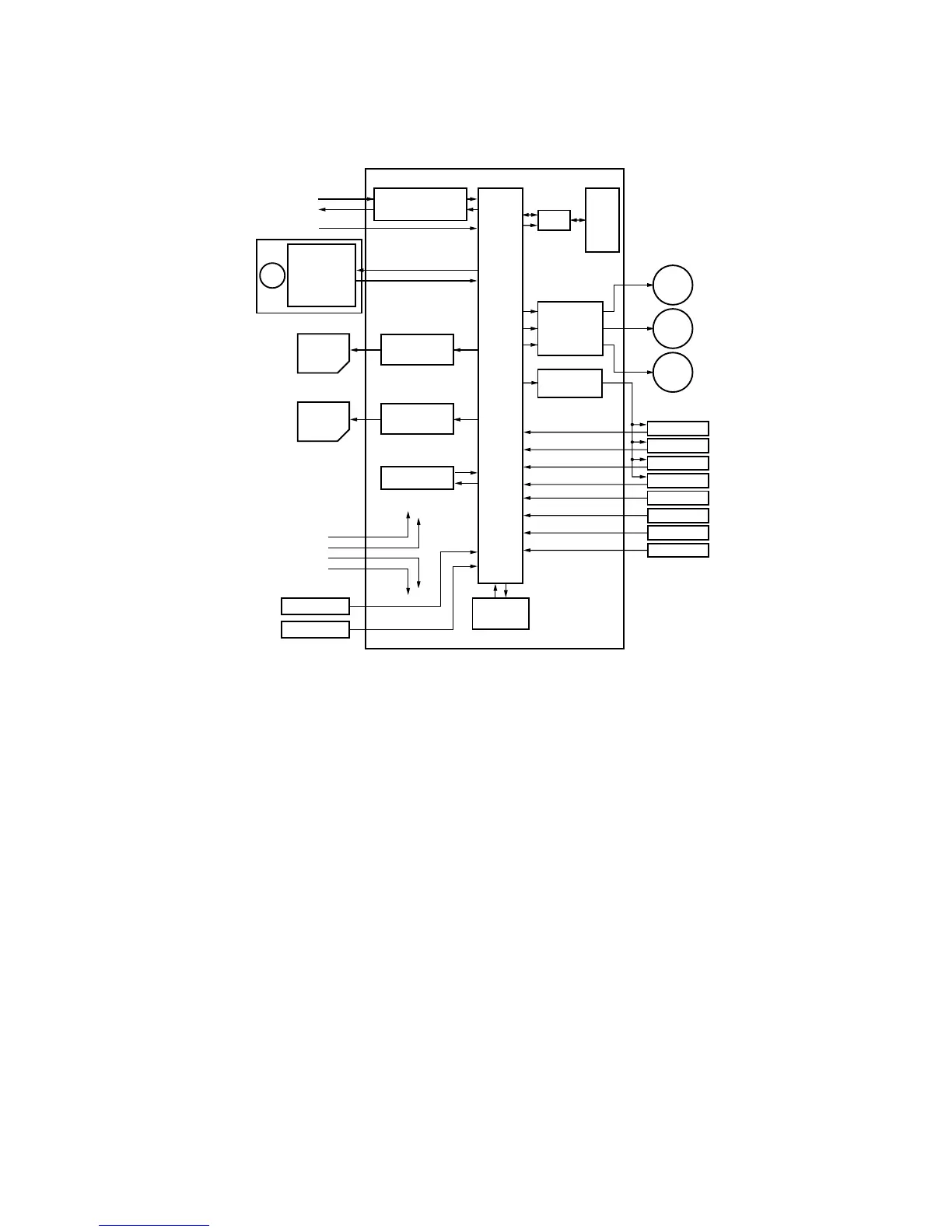

Figure 2-3-1 Deck main PCB block diagram
The deck main PCB (PDMPCB) consists of the CPU IC8, which serially communicates with the copier main PCB (MPCB);
the deck paper conveying motor drive circuit; the paper deck motor drive circuits; the clutch drive circuit; the reset circuit; and
the LED drive circuit. It controls the entire large paper deck.
