Machine front Machine inside Machine rear

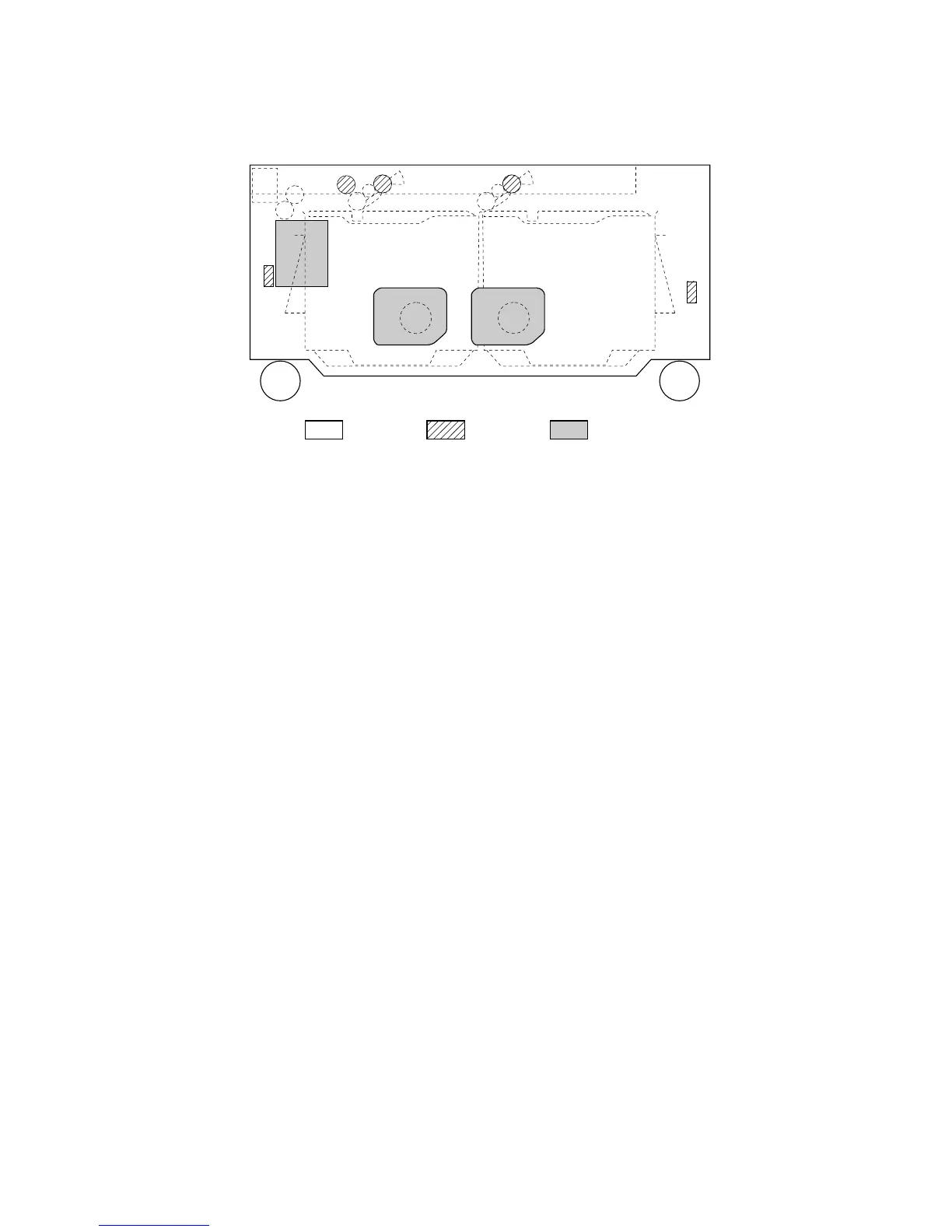

Figure 2-2-3 Other electrical components
1. Paper conveying clutch (CCL) .......................... Regulates drive transmission to the upper and lower deck separation
rollers.
2. Paper feed clutch 1 (PFCL1)............................. Regulates drive transmission to deck paper feed roller 1.
3. Paper feed clutch 2 (PFCL2)............................. Regulates drive transmission to deck paper feed roller 2.
4. Deck paper conveying motor (CM) ................... Drives the large paper deck.
5. Paper deck motor 1 (PDM1) ............................. Raises the left cassette lift.
6. Paper deck motor 2 (PDM2) ............................. Raises the right cassette lift.
7. Dehumidifier heater 1* (DH1)............................ Dehumidifies paper in the left cassette.
8. Dehumidifier heater 2* (DH2)............................ Dehumidifies paper in the right cassette.
* Service part.
