Machine front Machine inside Machine rear

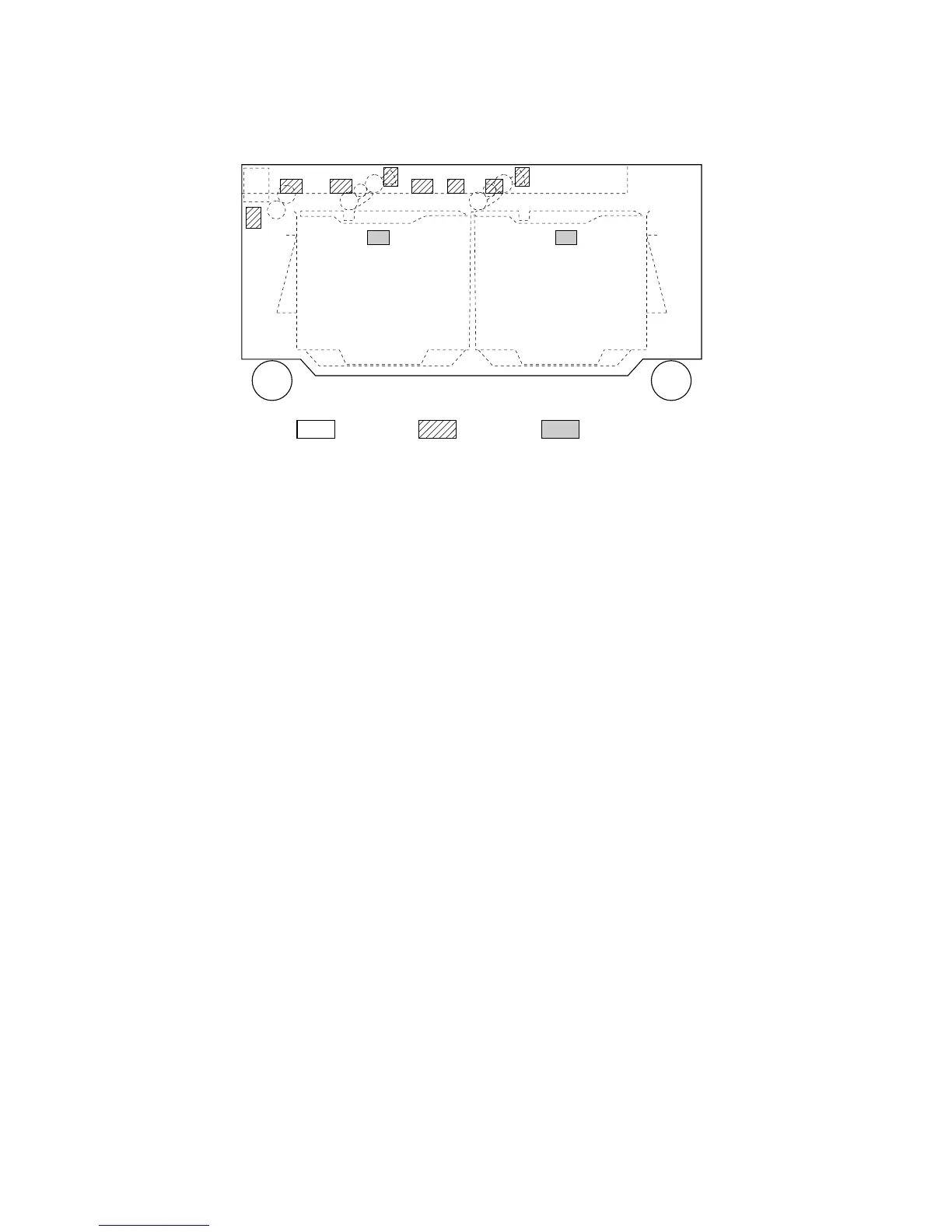

Figure 2-2-2 Switches and sensors
1. Paper path sensor 1 (PPSENS1) ...................... Detect paper jams and the absence of paper on the lifts.
2. Paper path sensor 2 (PPSENS2) ...................... Detect paper jams and the absence of paper on the lifts.
3. Paper path sensor 3 (PPSENS3) ...................... Detect paper jams and the absence of paper on the lifts.
4. Paper empty sensor (PESENS) ........................ Detects the absence of paper in the right cassette.
5. Deck level switch 1 (DLSW1) ............................ Detects the left cassette lift in the home position.
6. Deck level switch 2 (DLSW2) ............................ Detects the right cassette lift in the home position.
7. Side cover switch (SCSW) ................................ Detects if the deck side cover is open or closed.
8. Deck open/closed safety switch (DOSSW) ....... Detects if the deck is open or closed.
9. Paper level detection sensor 1 (PLDSENS1).... Detects the paper level in the left cassette.
10. Paper level detection sensor 2 (PLDSENS2) .... Detects the paper level in the right cassette.
