Copystar CS-3035 - Paper Misfeed Detection Conditions

3CP
1-3-2
(2) Paper misfeed detection condition

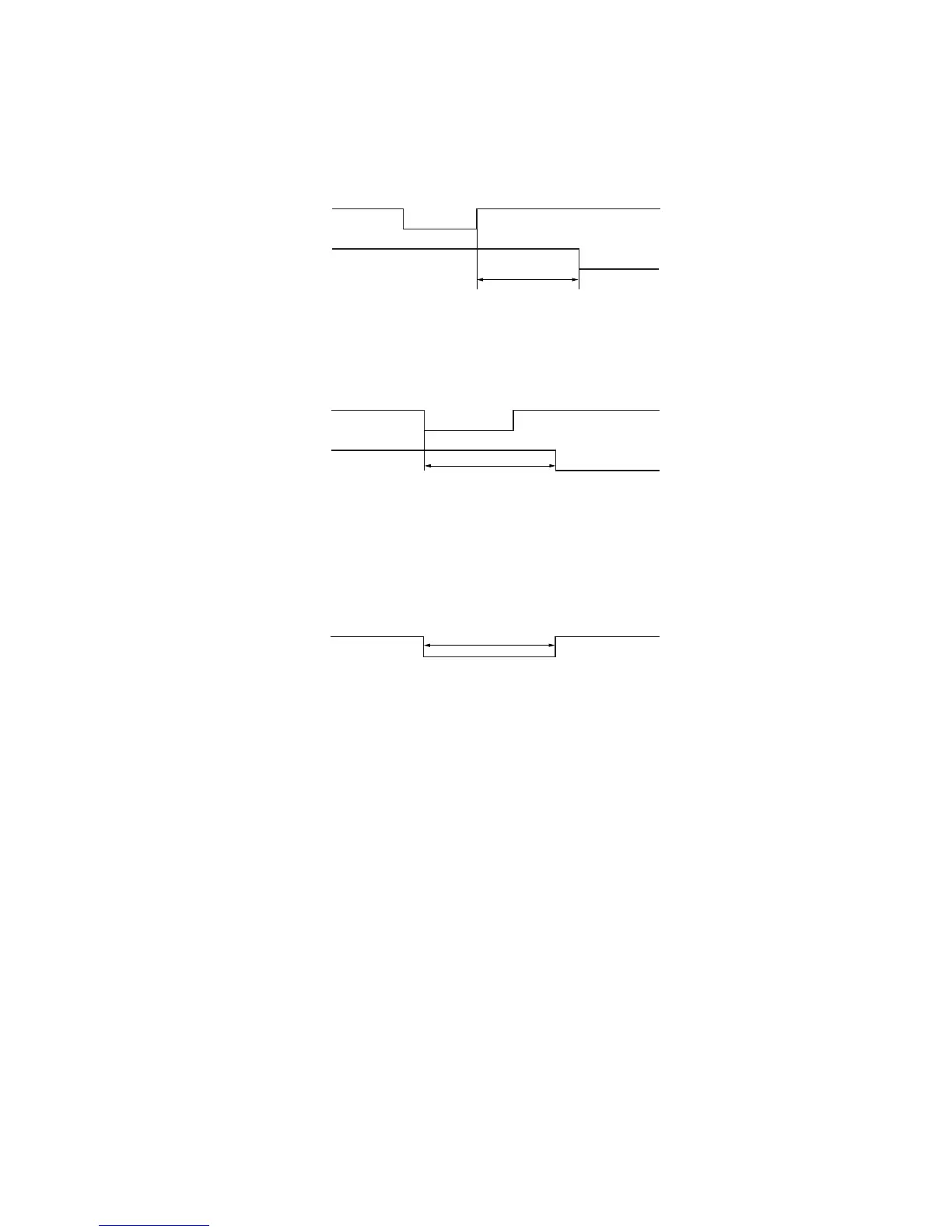

• Misfeed in switchback section (jam code 53)
The switchback eject switch (SBESW) does not turn off within 2797 ms of the copier feedshift switch (FSSW) turning on.
2798 ms
FSSW
SBESW
OFF
ON
OFF
ON
Timing chart 1-3-1
The switchback eject switch (SBESW) does not turn on within 3680 ms (6500 ms) of the switchback feed in switch
(SBFISW) turning on.
3680 (6500) ms
Paper size: A4R/81/2"×11"
The value in the parentheses indicates
A3/11"×17"
SBFISW
SBESW
OFF
ON
OFF
ON
Timing chart 1-3-2
The switchback eject switch (SBESW) does not turn off within 1050 ms (2100 ms) of turning on.
1050 (2100) ms
Paper size: A4R/81/2"×11"
The value in the parentheses indicates
A3/11"×17"
SBESW
OFF
ON
Timing chart 1-3-3
