Copystar CS-3035 - Electrical Parts Layout

3B6
2-2-1

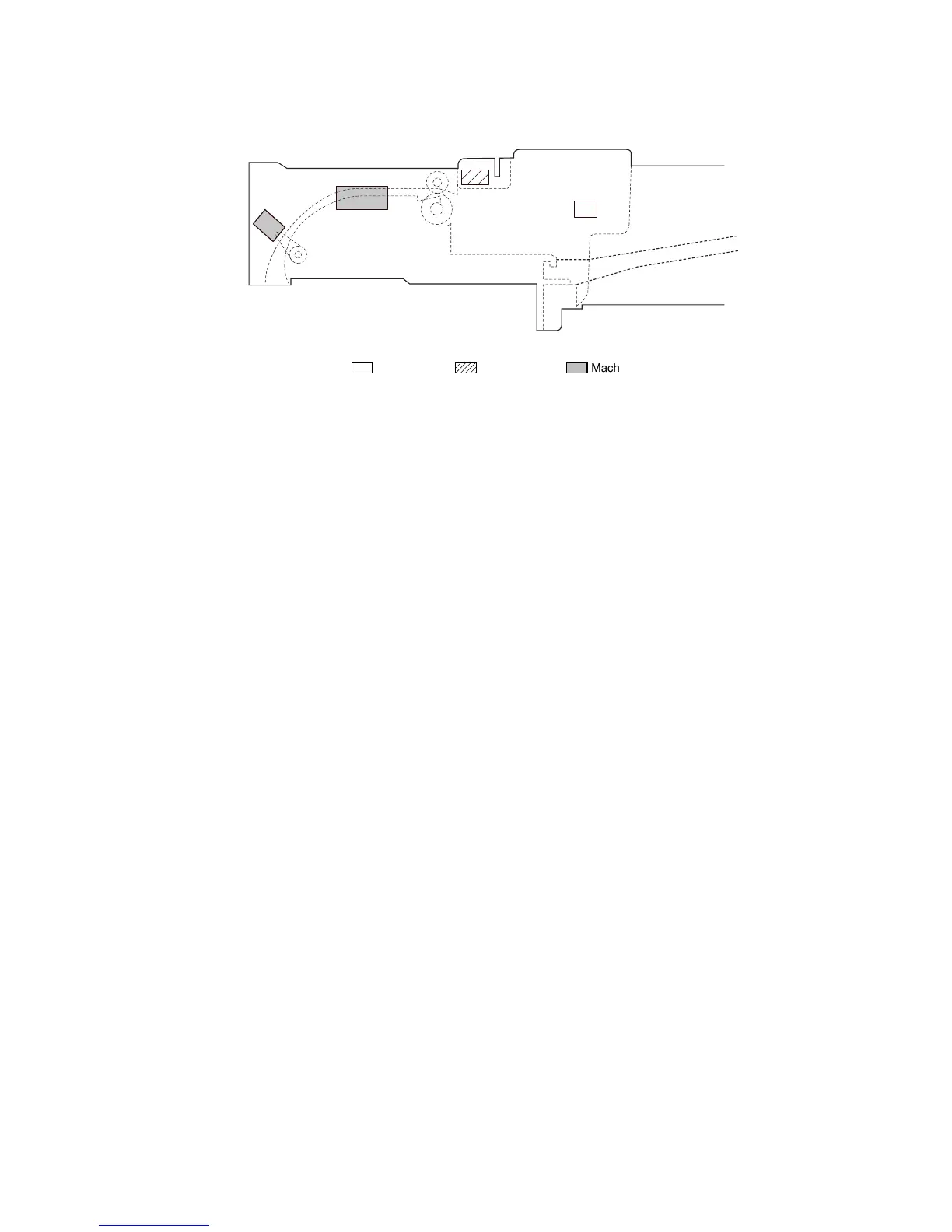

2-2-1 Electrical parts layout
Figure 2-2-1
1. Job separator eject switch (JBESW) ........... Detects a paper jam in the job separator.
2. Ejected paper detection switch (EPDSW) ... Detects the presence of paper on the job separator tray.
3. Feedshift solenoid (FSSOL) ........................ Operates the feedshift guide of the copier.
4. LED .............................................................. Indicates the presence of paper on the job separator tray.
1
2
3
4
Machine front Machine inside
;;
;;
Machine rear
