1-6-5 Developing section
(1) Detaching and refitting the developing unit
Follow the procedure below to replace the developing unit.
Procedure
1. Open the front cover.
2. Remove the toner container and toner
disposal tank.
3. Remove the screw and turn the developing
release lever in the direction of the arrow.

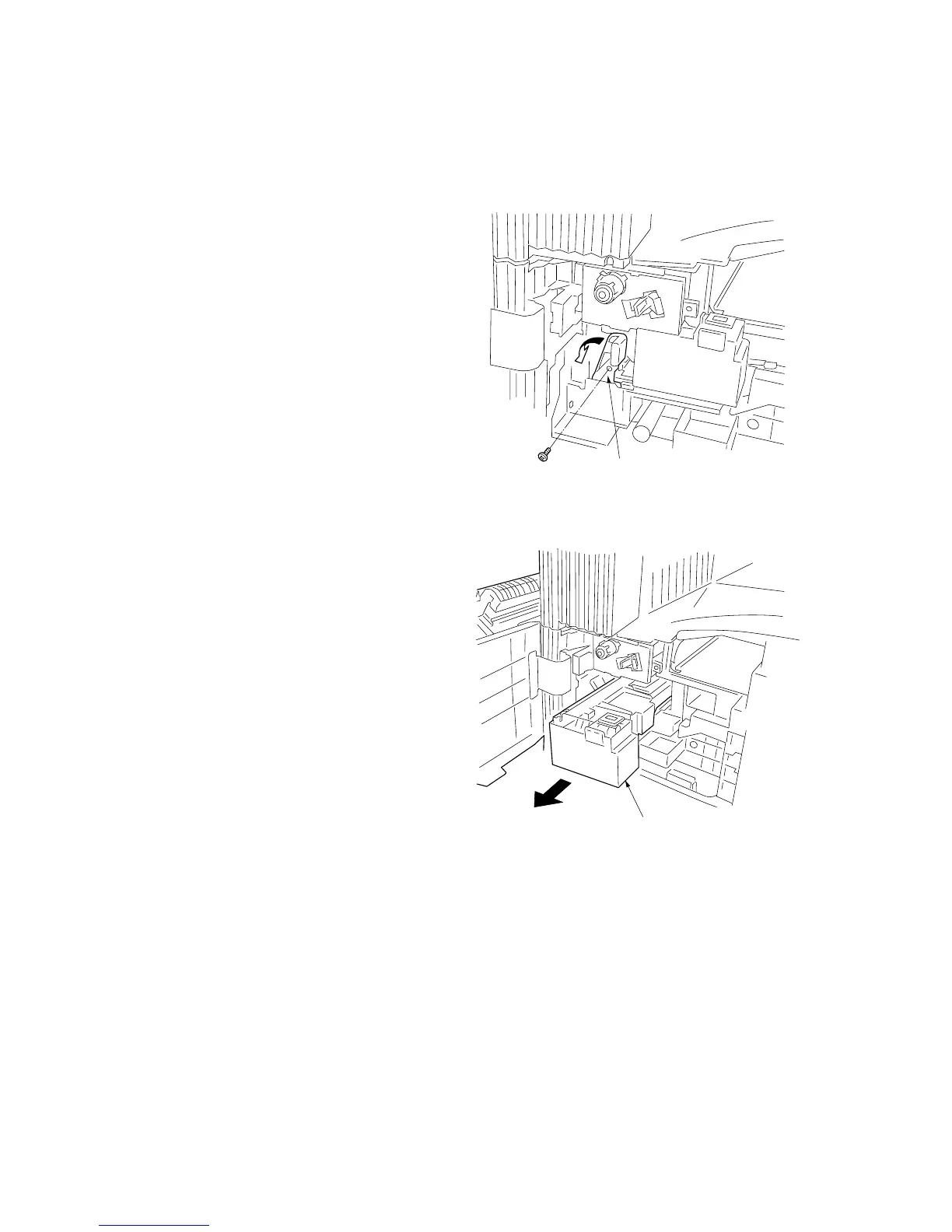

Figure 1-6-62
4. Remove the developing unit.
5. Replace the developing unit and refit all the
removed parts.
Figure 1-6-63
Developing release lever
Developing unit
