5FF
1-2-3

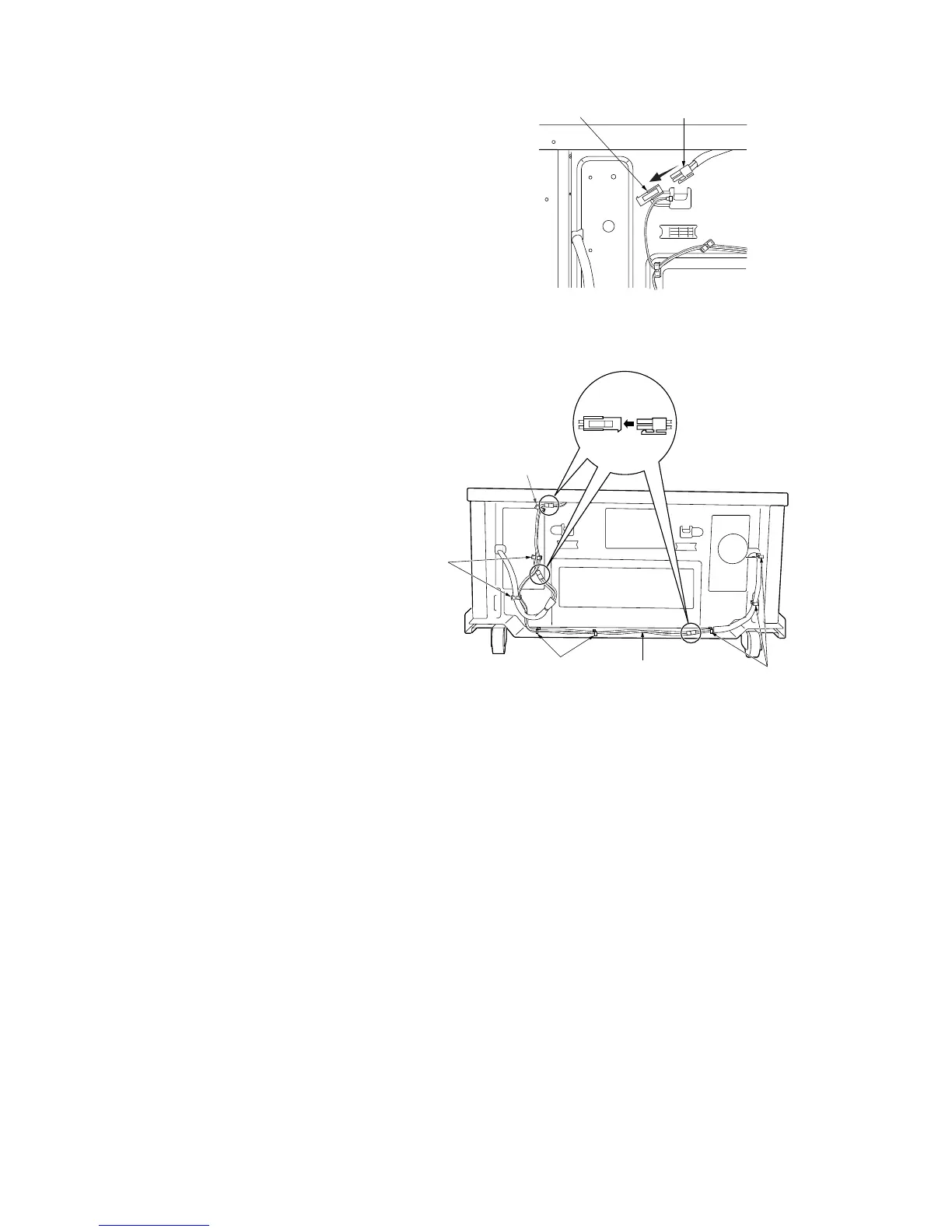

8. Detach the open connector from the connector
of the main harness on the machine rear.
Figure 1-2-4
9. Insert the dehumidifier heater connectors into
the relay wire connectors.
10. Insert the main harness connector into the
relay wire connector.
11. Tidy up the dehumidifier heater cable and relay
wire using the eight wire saddles and route the
cable and wire while clipping the wire saddles
into the holes in the rear frame.
12. Refit all removed parts.
Figure 1-2-5
Main harnessOpen connector
Wire
saddles
Wire saddles
Wire saddles
Relay wire
Wire saddle
