2FD/2FF/2FG
2-1-18
48 ms
TC REM
ESW
RSW
EM
RCL
80 ms
323 ms
124 ms
52 ms
Image ready
Secondary paper
feed start
Secondary paper feed end
SC REM

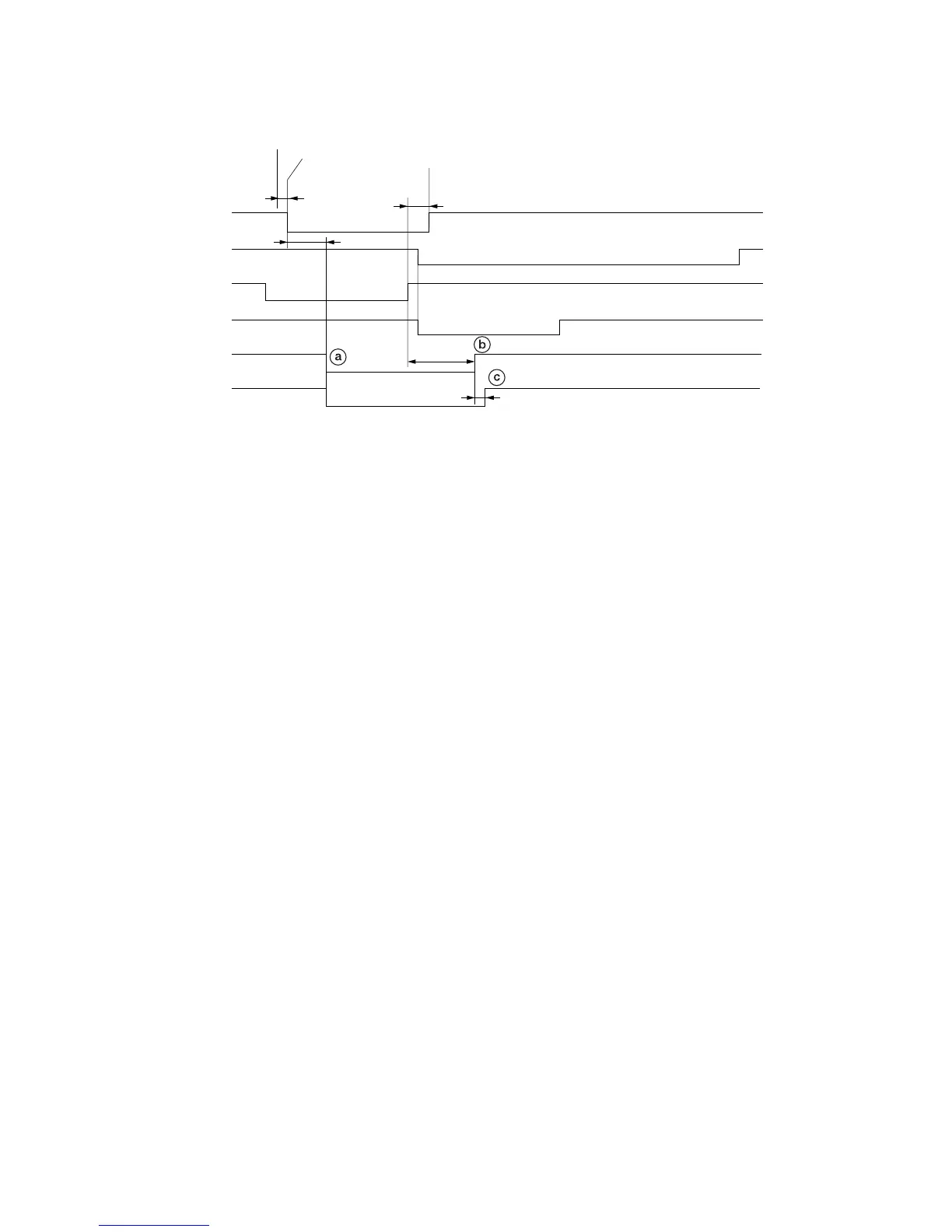

Timing chart 2-1-5 Transfer and separation sections operation
a: 80 ms after the registration clutch (RCL) turns on to start secondary paper feed, transfer charging (TC REM) starts.
Also separation bias (SC REM) turns on.
b: 323 ms after the trailing edge of the paper turns the registration switch (RSW) off, transfer charging (TC REM) ends.
c: 52 ms after transfer charging (TC REM) ends, separation bias (SC REM) turns off.
