3CC
1-3-2

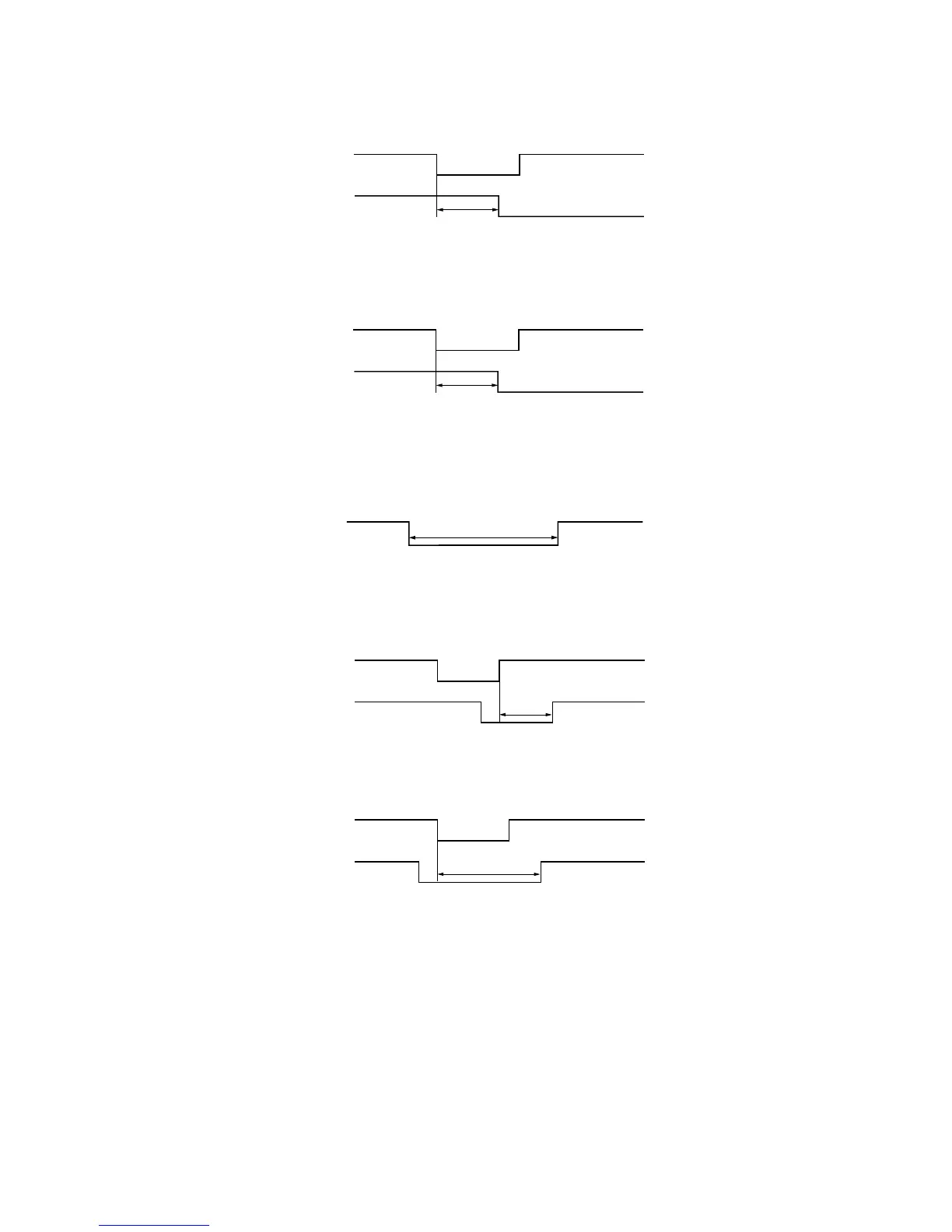

• Jam in copier vertical paper conveying section (jam code 18)
Feed switch 2 (FSW2) of the copier does not turn on within 1203 ms of feed switch 3 (FSW3) of the copier turning on.
FSW3 (copier)
1203 ms
On
Off
On
Off
FSW2 (copier)
Timing chart 1-3-3
• Jam in paper feed desk vertical paper conveying section (jam code 19)
Feed switch 3 (FSW3) of the copier does not turn on within 888 ms of the desk feed switch (DFSW) turning on.
DFSW
888 ms
On
Off
On
Off
FSW3 (copier)
Timing chart 1-3-4
• Multiple sheets in paper feed section (jam code 21)
Feed switch 3 (FSW3) of the copier and the desk feed switch (DFSW) do not turn off within the time required to convey the
length of the used paper size plus 635 ms of turning on.
FSW3 (copier)
DFSW
Paper size + 635 ms
On
Off
Timing chart 1-3-5
• Multiple sheets in vertical paper conveying section (jam code 22)
Feed switch 2 (FSW2) of the copier does not turn off within 1203 ms of feed switch 3 (FSW3) of the copier turning off.
FSW3 (copier)
1203 ms
On
Off
On
Off
FSW2 (copier)
Timing chart 1-3-6
Feed switch 2 (FSW2) of the copier does not turn off within 1203 ms of feed switch 3 (FSW3) of the copier turning on.
FSW3 (copier)
1203 ms
On
Off
On
Off
FSW2 (copier)
Timing chart 1-3-7
