8. Remove the connectors of the desk feed,
upper and lower paper feed clutches and
then the clutches.

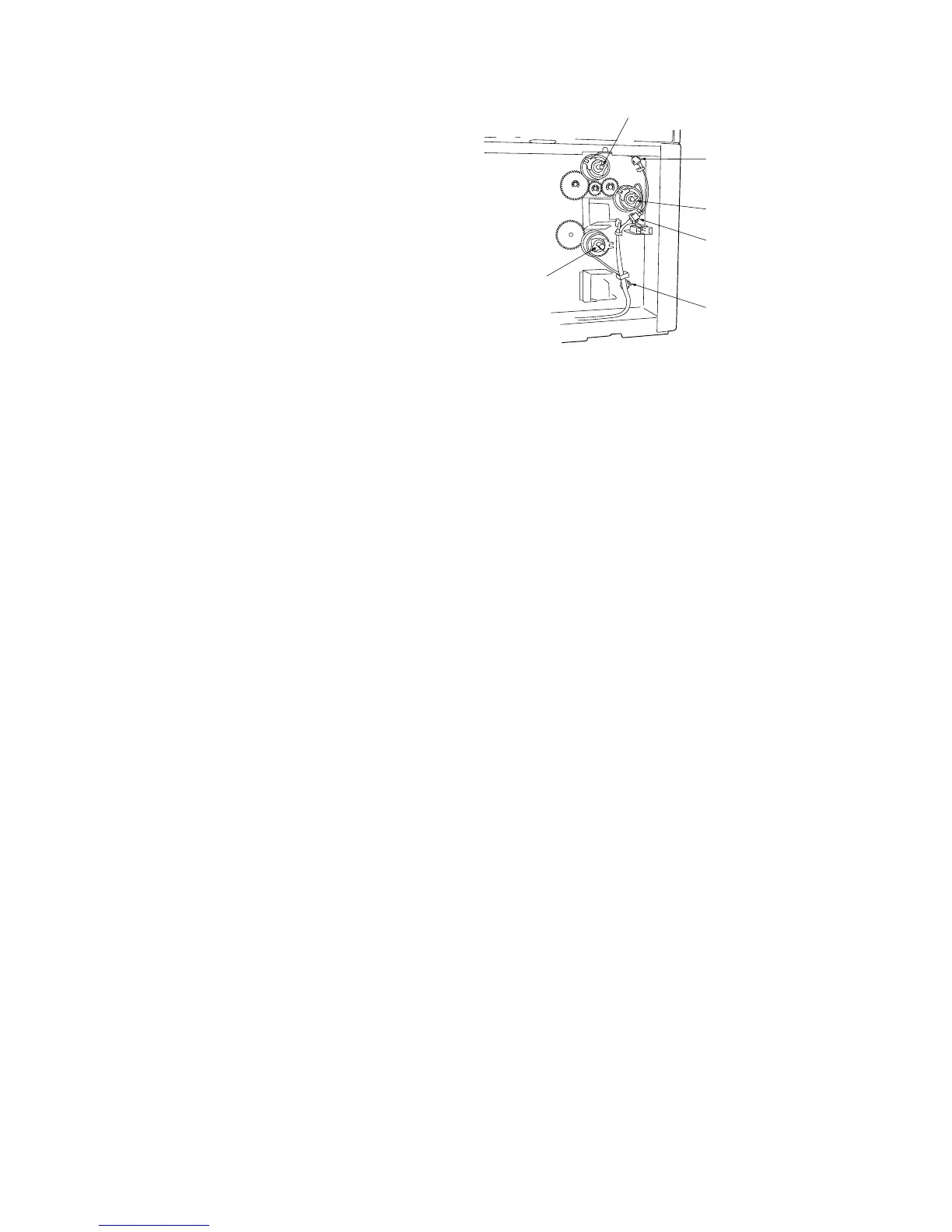

Figure 1-4-13 Detaching the desk feed, upper and lower
paper feed clutches
9. Replace the clutches.
10. Refit all removed parts.
Caution:
When fitting the clutches, be sure to refit the whirl-stops.
Desk upper paper feed clutch
Desk feed clutch
Connector
Connector
Connector
Desk lower paper
feed clutch
