Copystar CS-3035 - Page 459

3CC
2-4-2
Start key
DM CN11-A3
DDM CN4-6
RCL CN10-A5
FCL1 CN10-A7
FCL2 CN10-A9
FCL3 CN10-A11
DFCL CN2-1
DPFCL-L CN1-13
MC REMCN9-14
FSM CN2-7, 8, 9, 10
CL CN13-4
RSW CN8-25
ESW CN2-15
FSW1 CN15-5
FSW2 CN15-8
FSW3 CN15-11
DFSW CN2-7
TC REM CN9-9
DB REM CN9-11
100 ms
123 ms
123 ms
17 ms
30 ms
48 ms
Min 78 ms
124 ms
100 ms
344 ms
323 ms
518 ms
500 ms
200 ms
300 ms
350 ms
190 ms
Image ready
215 ms

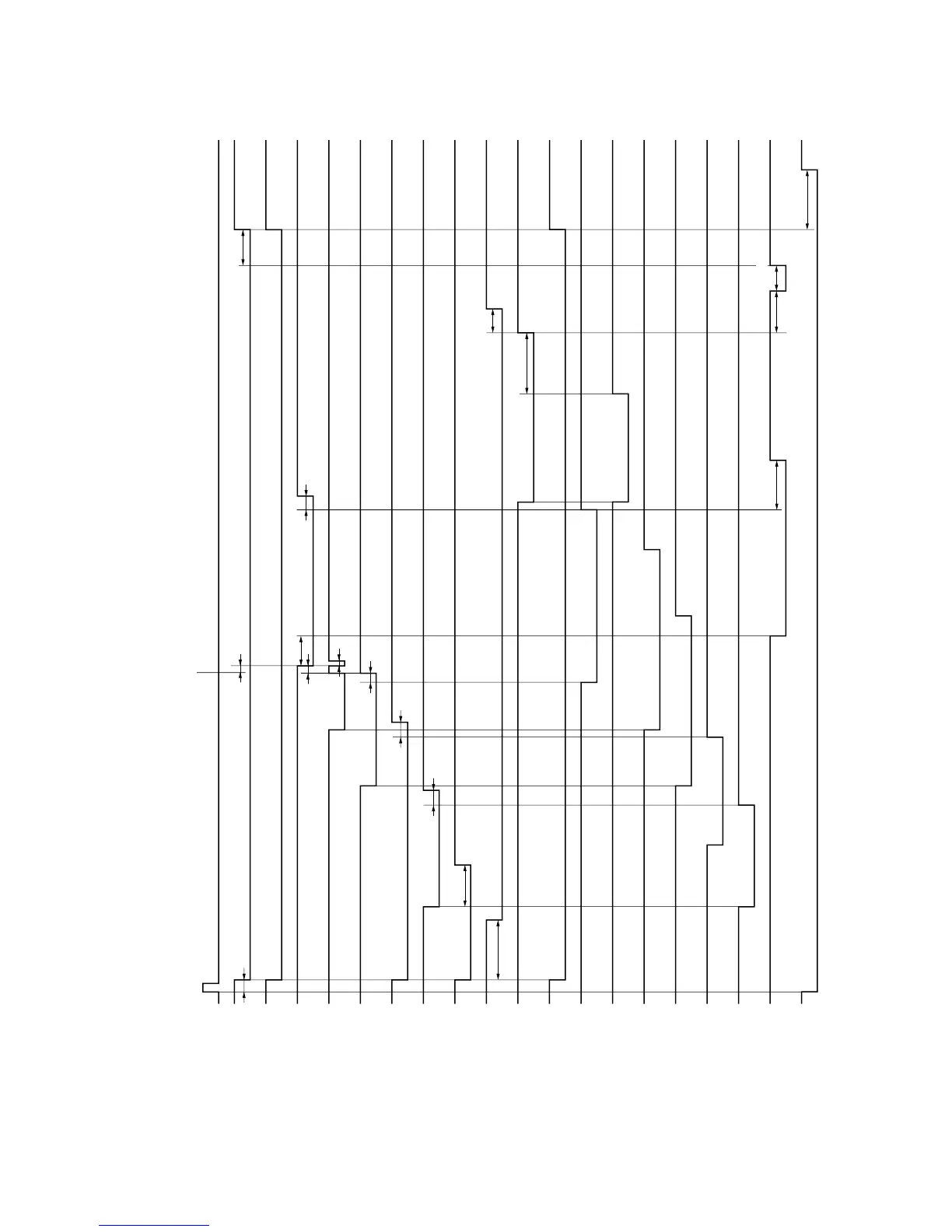

Timing chart No. 2 Copying an A4/11"
××
××
× 8
1
/
2
" original onto an A4/11"
××
××
× 8
1
/
2
" copy paper from the paper feed desk lower drawer,
magnification ratio 100%, manual copy density control
