• Right cassette paper feed
As the last sheet in the left cassette is fed, paper feed clutch 2 (PFCL2) and paper feed clutch 1 (PFCL1) turn on for paper
feed from the right cassette. Deck paper feed rollers 1 and 2 start to rotate to convey paper from the right cassette onto the
left cassette lift.
10 ms
42 ms
80 ms
FSW3 (copier)
PPSENS1
PPSENS2
PPSENS3
PFCL1
PFCL2
a
b
c
d

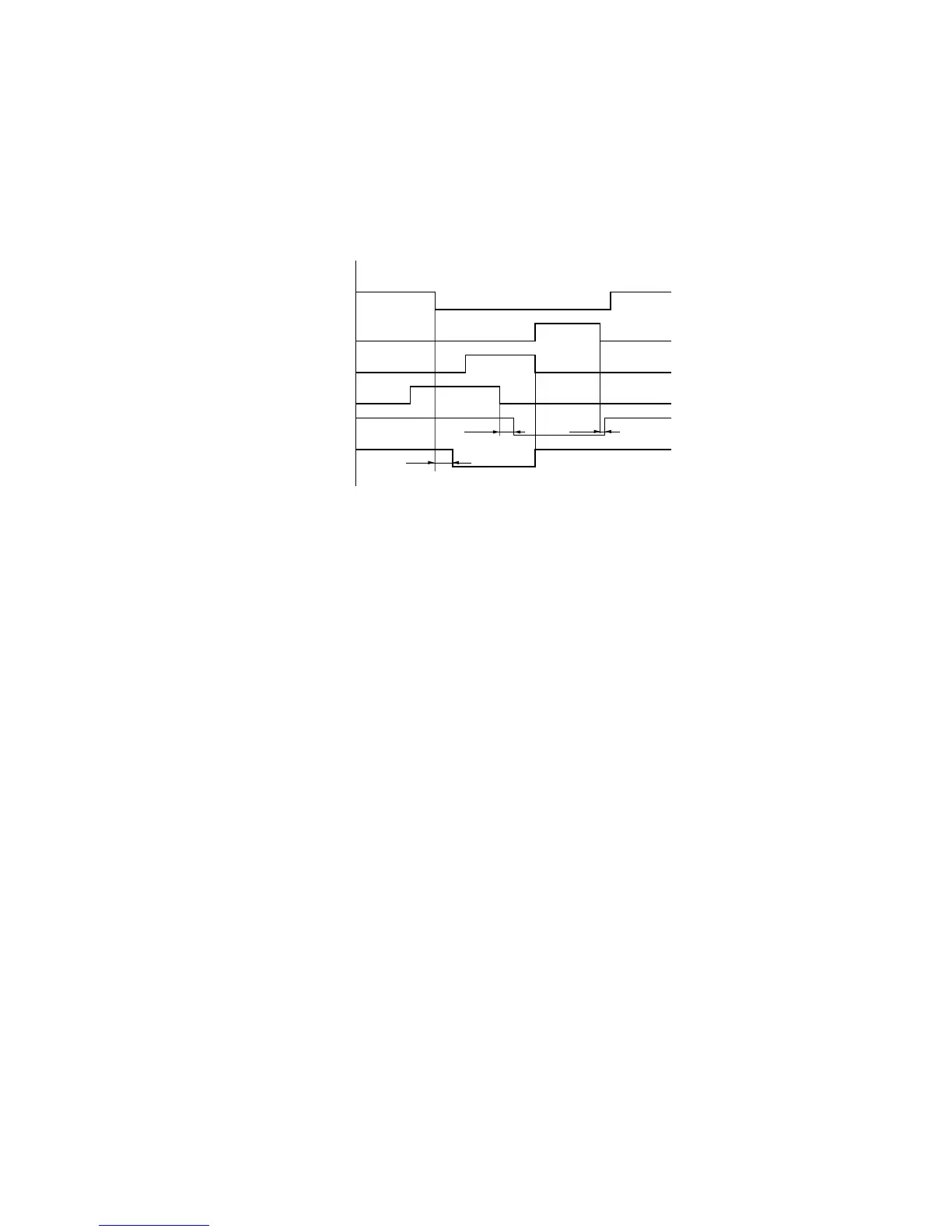

Timing chart 2-1-2 Right cassette paper feed
a 42 ms after the last paper from the left cassette has turned copier feed switch 3 (FSW3) on, paper feed clutch 2 (PFCL2)
turns on to start paper feed.
b 80 ms after the leading edge of the paper from the right cassette has turned paper path sensor 3 (PPSENS3) on, paper
feed clutch 1 (PFCL1) turns on.
c At the same time as the leading edge of the paper from the right cassette turns paper path sensor 2 (PPSENS2) on, paper
feed clutch 2 (PFCL2) turns off.
d 10 ms after the leading edge of the paper from the right cassette turns paper path sensor 1 (PPSENS1) on, paper feed
clutch 1 (PFCL1) turns off and paper stops in the left cassette to complete paper feed from the right cassette.
