TigoMaster 2TH – PROFINET User Manual

Page 24 of 69

• D-Coded M12 communication cable

• IO-Link Wireless Master

Connect the Ethernet cable to the M12 connector Ethernet X31 of the TigoMaster 2TH device. Then,

connect the power cable (+24 V DC SELV or PELV) to the M12 connector PWR IN X21 of the TigoMaster

2TH device.

TigoBridge:

Connect the wired IO-Link device with the cable to the W-Bridge. Then, connect the power cable (+24 V

DC SELV or PELV) to the power connector of the W-Bridge.

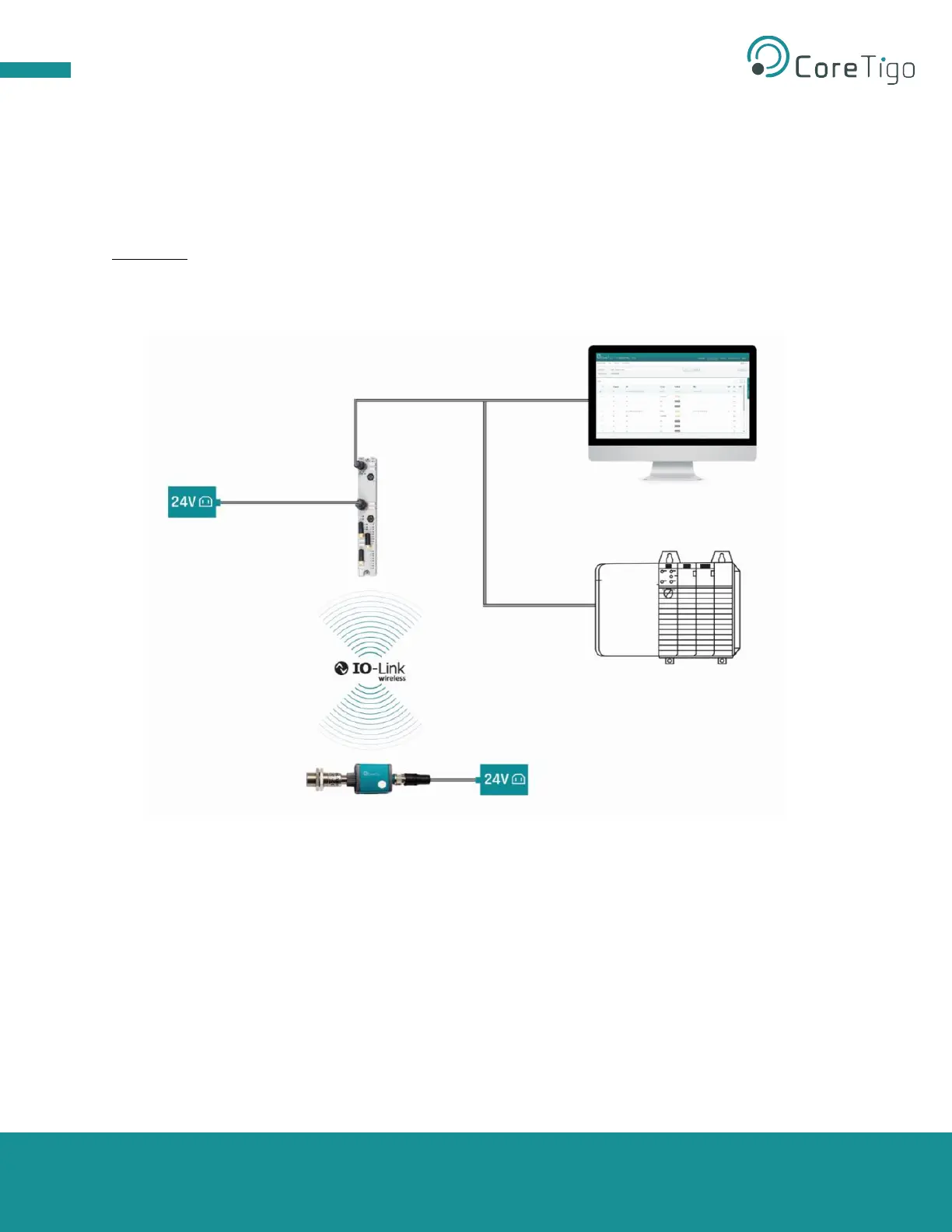

Figure 3: Connection
