0x05

Reset

Yes

Reset

0x0E

Get Attribute Single

Yes

Read an attribute

0x10

Set Attribute Single

Yes

Write an attribute

0x18

Get Member

Yes

Read a log entry

0x1B

Remove Member

Yes

Remove a log entry

7.3. IO-Link

7.3.1. Event Qualifier

The event qualifier is a bit-coded information about the event.

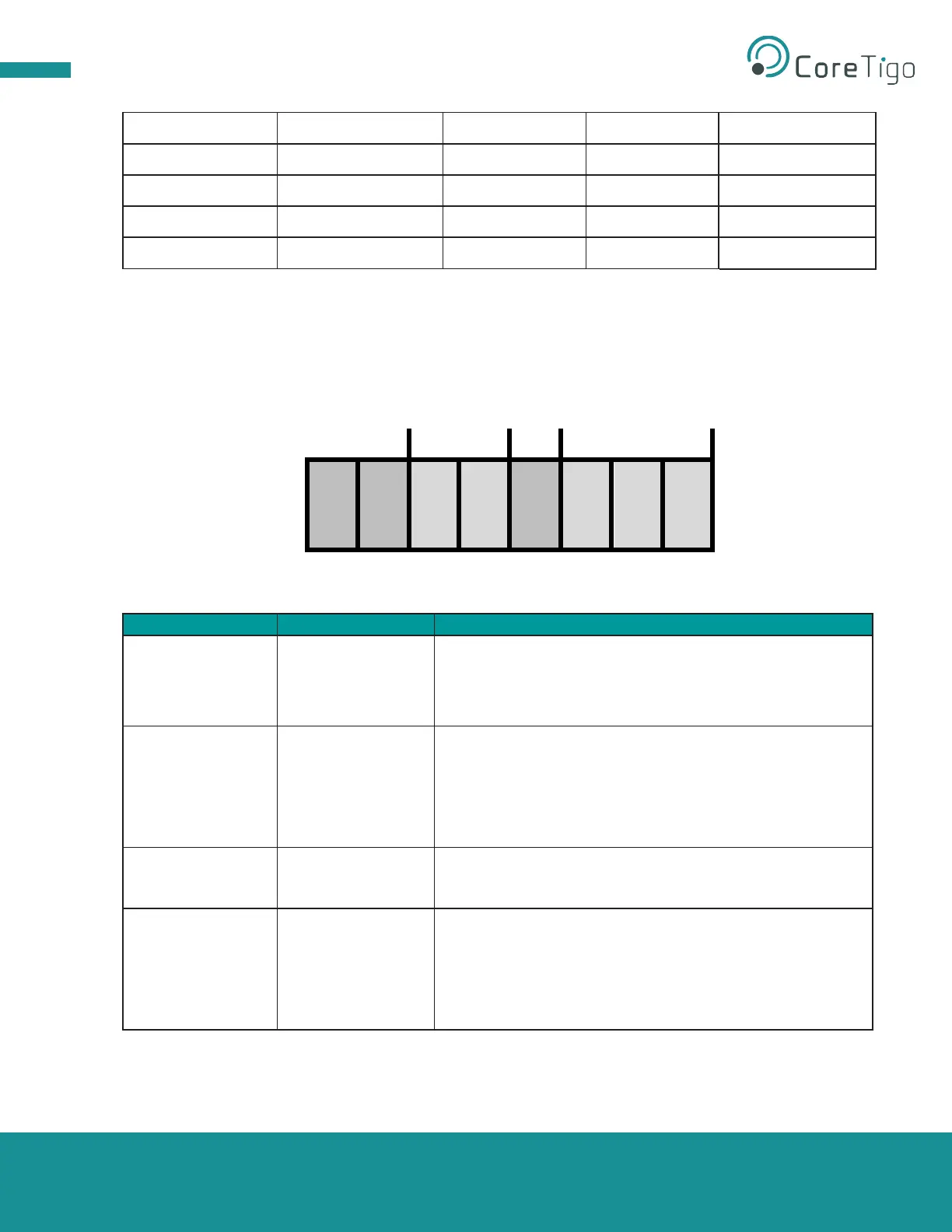

Figure 25: Event Qualifier

Mode

Type

Source

Instance

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Bit 0

Table 37: Event Qualifier

Bit

Name

Description

Bit 6–7

Mode

0: reserved

1: Event single shot 2: Event disappears

3: Event appears

Bit 4–5

Type

0: reserved

1: Notification

2: Warning

3: Error

Bit 3

Source

0: Device (remote)

1: Master/Port

Bit 0–2

Instance

0: unknown

1–3: reserved

4: Application

5–7: reserved

7.3.2. IO-Link Wireless Master Event Codes

Table 38: Master Event Codes
