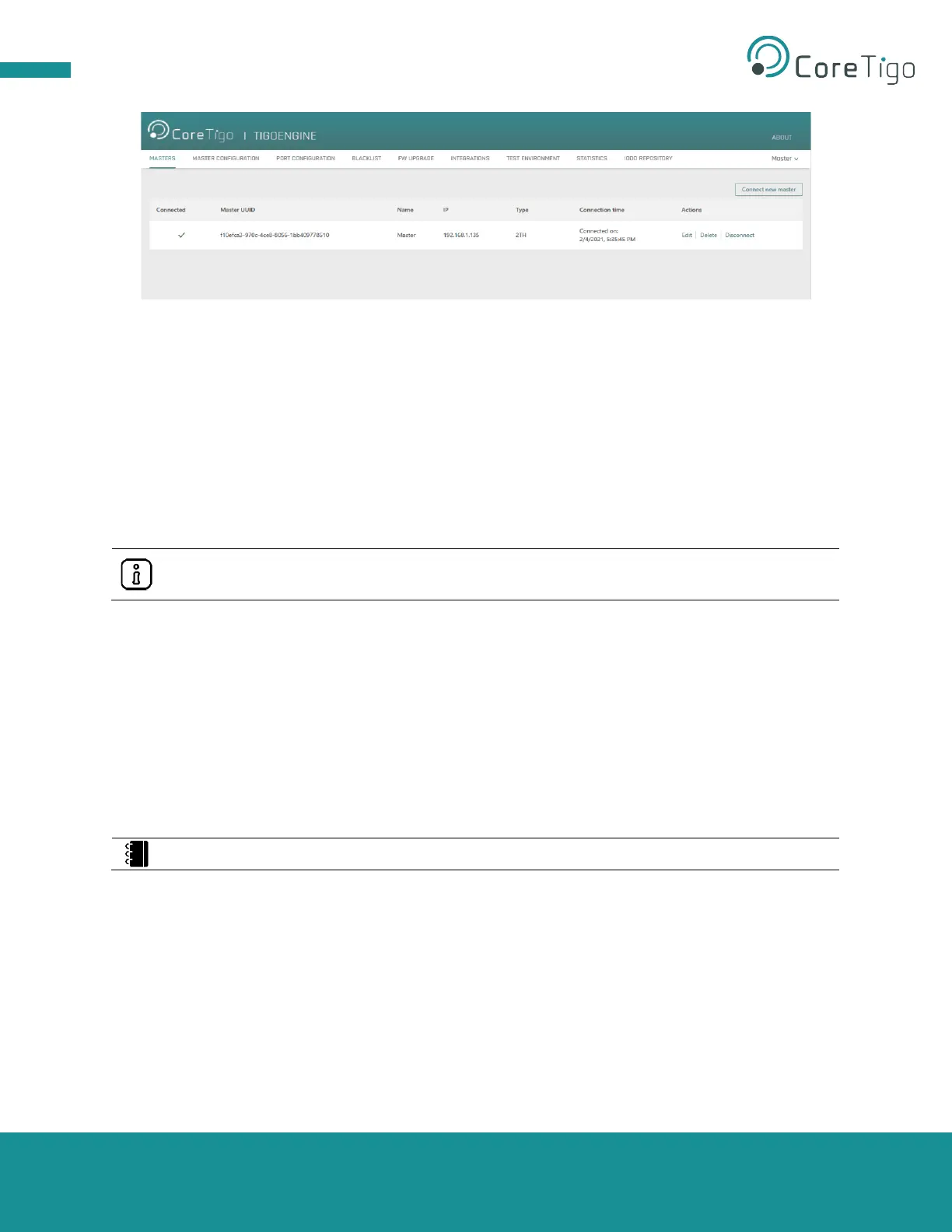

Figure 20: Masters View – One TigoMaster 2TH Connected

You can Disconnect the TigoMaster 2TH or Edit/Delete its details in TigoEngine by selecting it and then

clicking the relevant button in the Actions column.

5.2.3. TigoEngine Connection Types

TigoEngine provides 3 types of connection:

• Exclusive Owner: The scanner can read input process data and write output process data.

• Input Only: The scanner can only read input process data.

• Listen Only: The scanner can only read input process data.

The Listen Only connection requires that another scanner has either an Exclusive Owner or

Input Only connection with TigoEngine.

The maximum quantity of usable sensors/actuators depends on the quantity of IO-Link bytes which the

used sensor/actuator must transfer:

• If 1 or more sensors/actuators must transfer 17 or more IO-Link bytes, then a maximum quantity

of 8 sensors/actuators (and one track) can be used.

• If all sensors/actuators require 16 IO-Link bytes or less, then a maximum quantity of 16

sensors/actuators (and two tracks) can be used.

5.2.4. Configuring Parameters

For details of specific parameters, see section 5.4 of the current manual.

For further details of how to use TigoEngine, see the TigoEngine User Manual.
