TigoMaster 2TH – PROFINET User Manual

Page 27 of 69

4. In the Manage General Station Description Files window, make sure that the Installed GSDs

tab is selected.

5. Click the ellipsis (…) button.

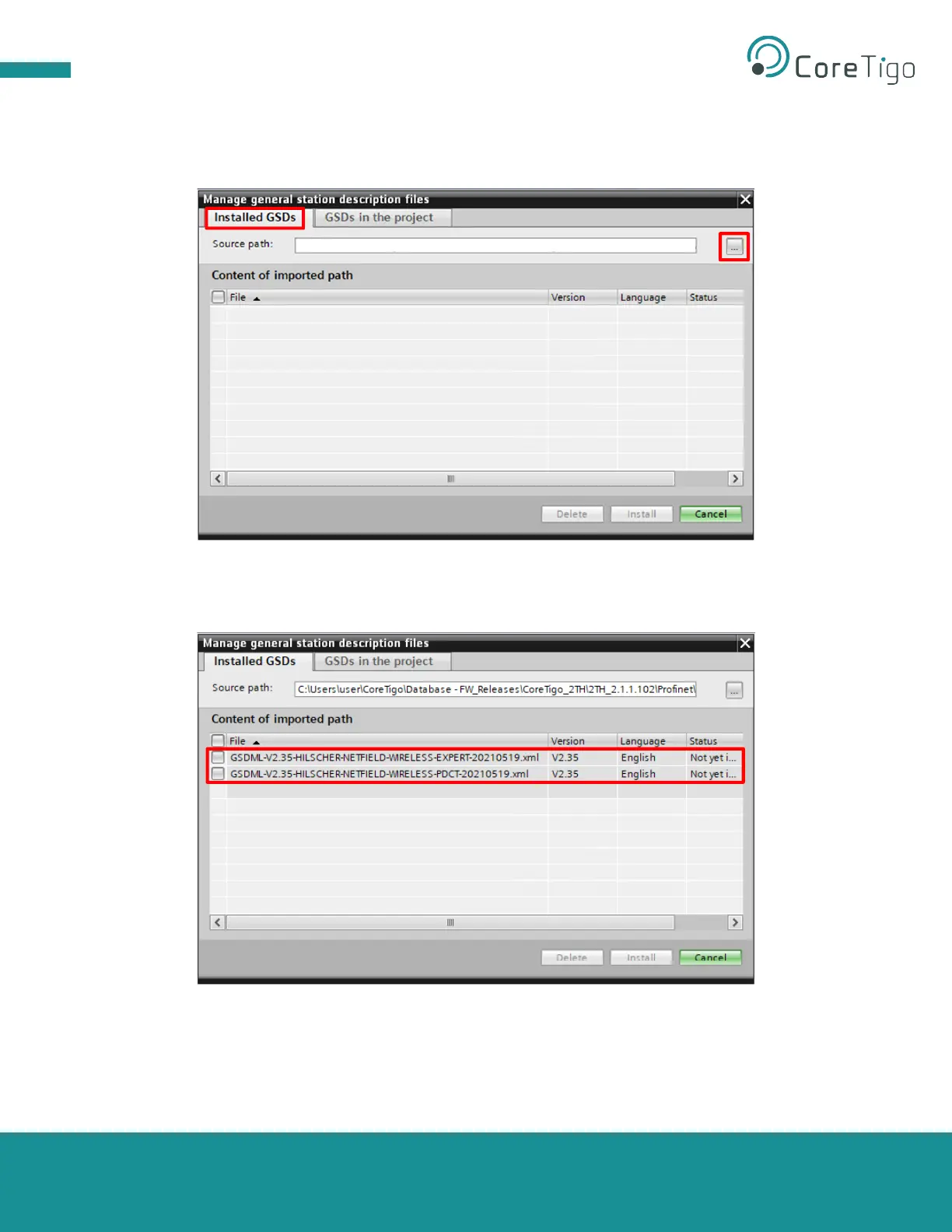

Figure 5: Manage General Station Description Files - Installed GSDs Tab

6. Select the Source Path for the GSDML file.

7. A list of available GSD files appears under Content of imported path.

Figure 6: List of Available GSD Files

8. Select the relevant GSDML file from the list.

9. Click the Install button.
