Copyright © 2021 CoreTigo Ltd.
TigoMaster 2TH – PROFINET User Manual
Page 28 of 69
10. When the installation is complete, a new module (TigoMaster 2TH) is added to the Hardware
catalog under Other field devices > PROFINET IO > I/O > Hilscher Gesellschaft für
Sytemautamation.

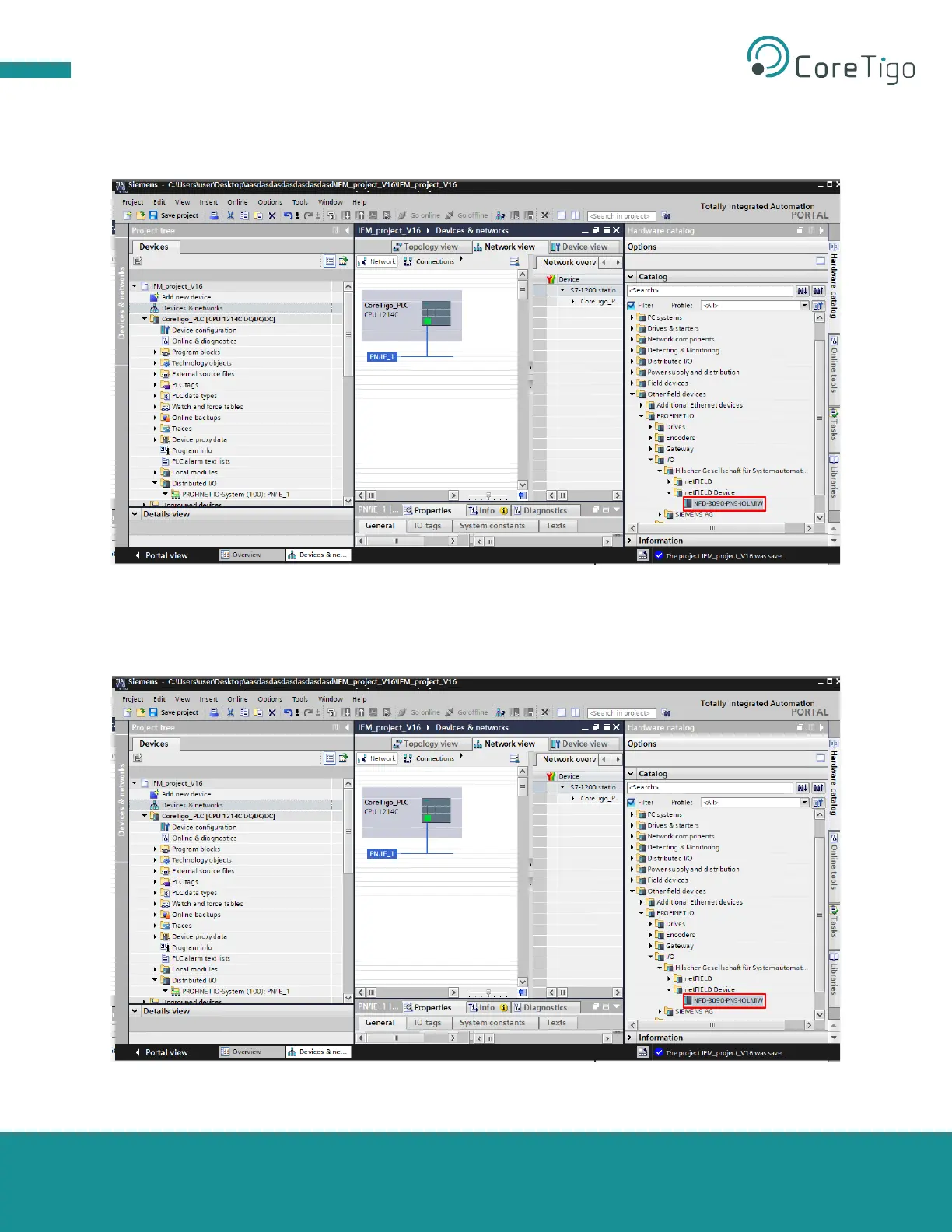

Figure 7 – New Module Added to Hardware Catalog
11. In the Hardware catalog pane, locate the TigoMaster 2TH, and then drag it to Devices &
networks > Topology view.
12. In the Network View tab, draw a connection between the TigoMaster 2TH and PLC .
Figure 8: Network View
13. Select the TigoMaster 2TH and go to the Device view tab.
