TigoMaster 2TH – PROFINET User Manual

Page 31 of 69

5.1.3. Configuring Submodules

1. Go to the Device View tab.

2. In the Catalog pane, go to Submodules -> IOL wireless generic devices, and select the

desired submodule.

3. Drag the selected submodule into the list in the Device overview tab.

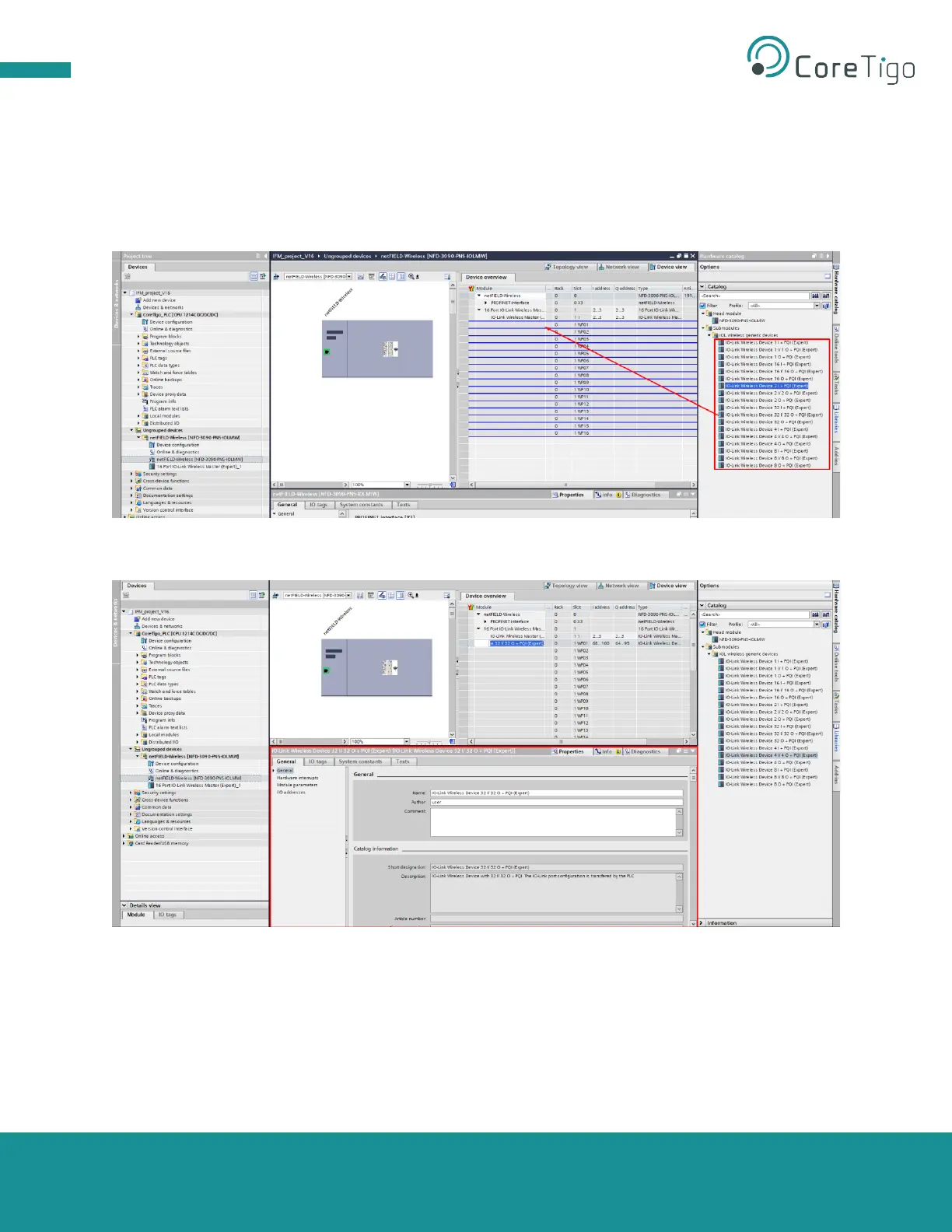

Figure 11: Device Overview

4. A new inspector pane appears (outlined in red in Figure 12).

Figure 12: Device Inspector Window
