TigoMaster 2TH – PROFINET User Manual

Page 30 of 69

15. In the General tab, go to PROFINET interface [x3] > Ethernet addresses.

16. Under IP protocol, set the desired IP address.

17. Under PROFINET, make sure the PROFINET device name is correct.

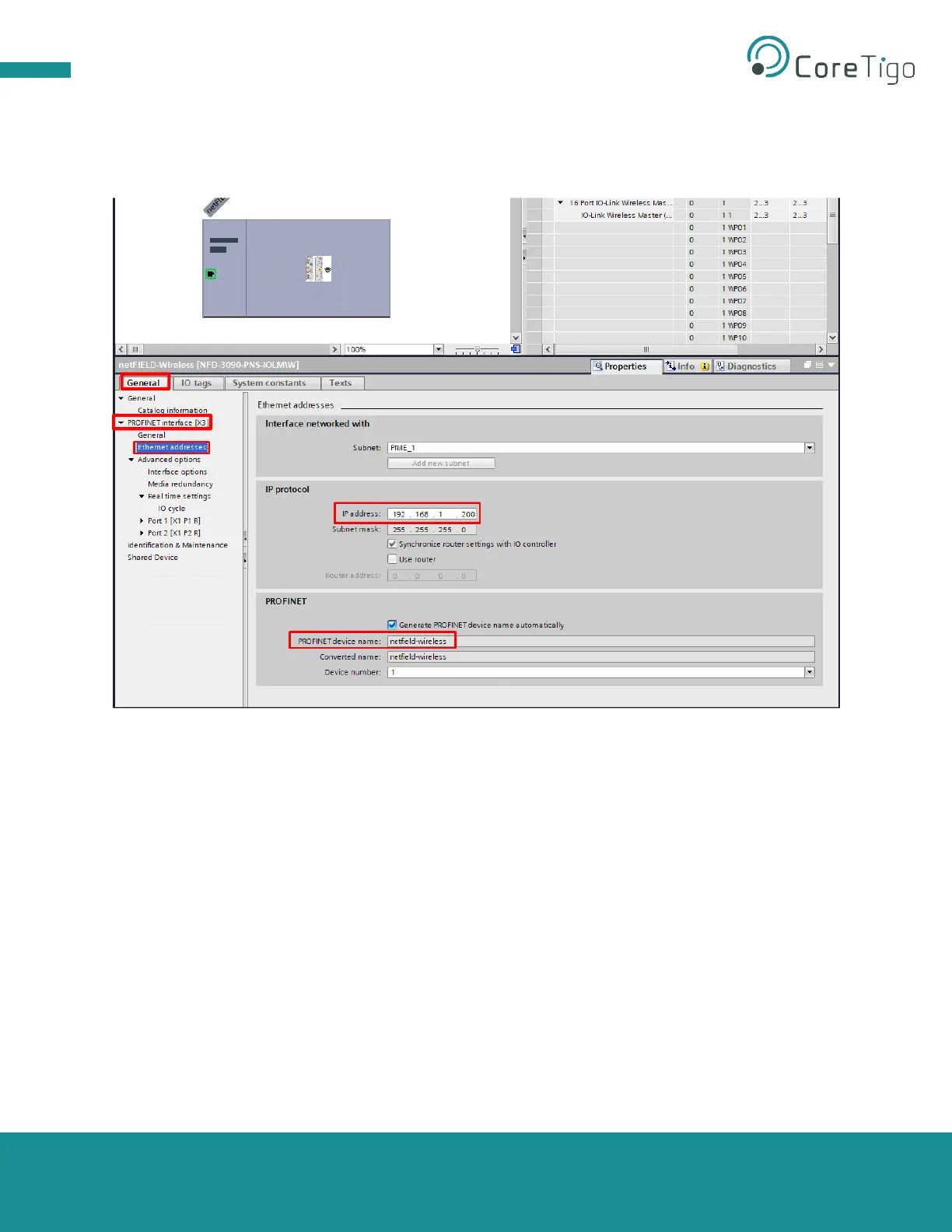

Figure 10: Ethernet Addresses
