TigoMaster 2TH – PROFINET User Manual

Page 33 of 69

8. In the Project Tree, under the relevant PLC go to PLC Tags > Show All Tags.

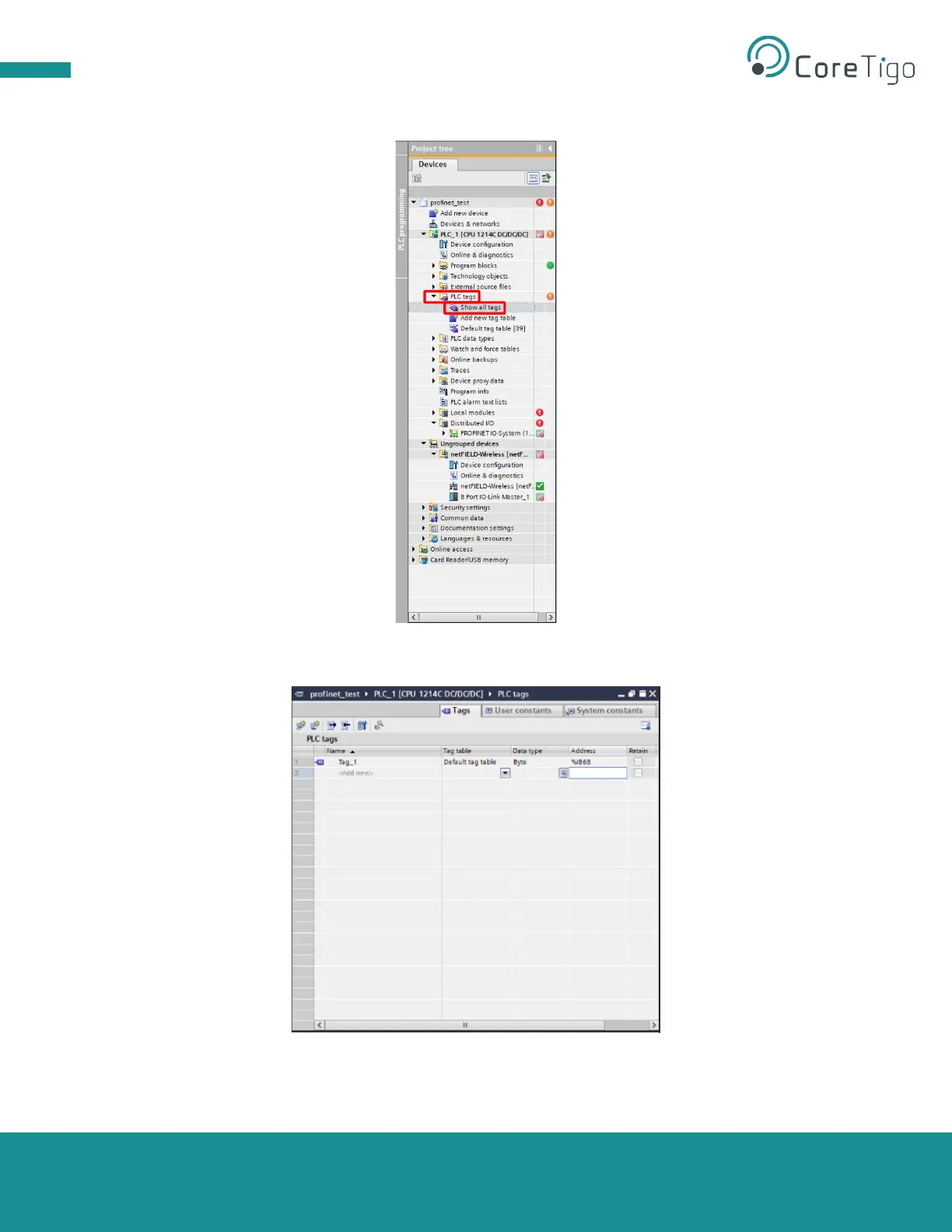

Figure 15: Show All Tags

9. In the Tags tab, set the W-Device tags.

Figure 16: Tags Tab
