16 Artiglio Master Code User Manual
1.2.c. ELECTRICAL AND PNEUMATIC
CONNECTIONS

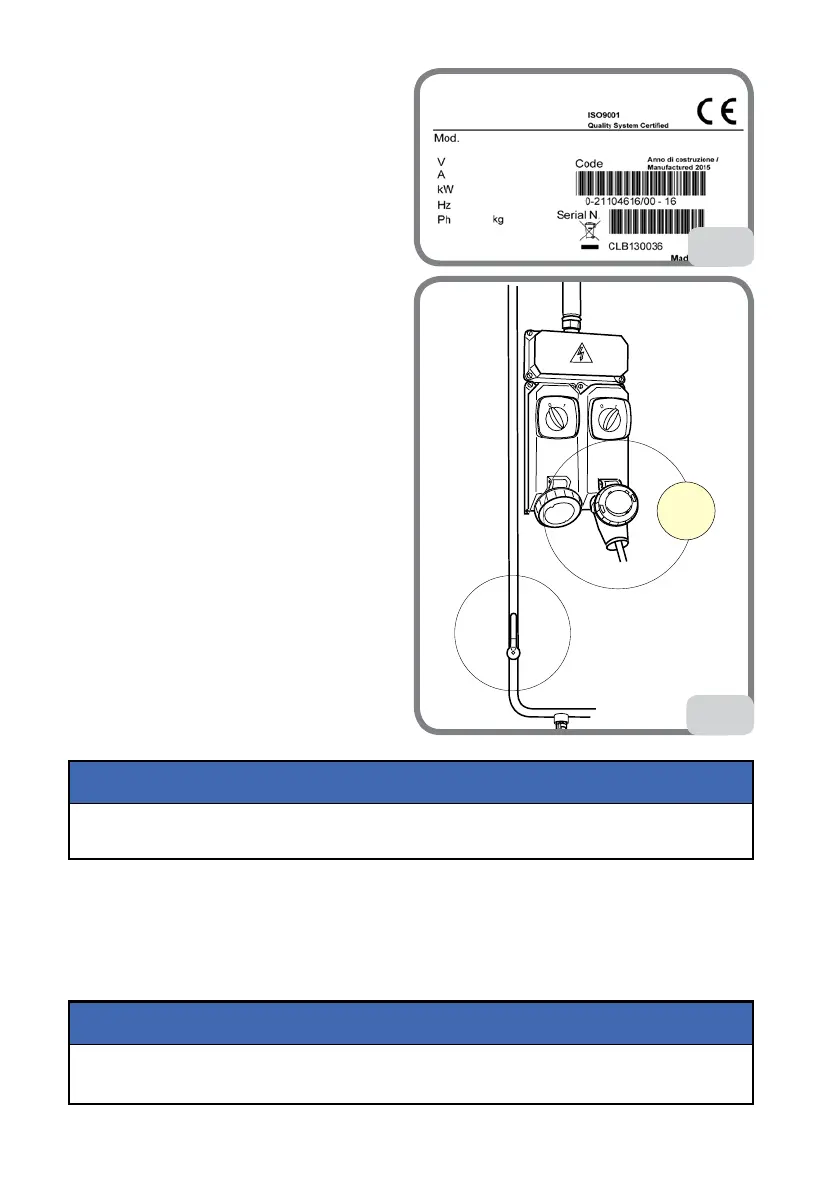

The dimensions of the electric hook-up
used must be suitably sized in relation to:
• the electric power absorbed by the ma-
chine, indicated on its data plate (Fig. 1);
• the distance between the machine and
the power supply hook-up point, so that
voltage drops under full load do not exceed
4% (10% during start-up) compared with the
rated voltage specified on the data plate.
- The operator must:
• t a power plug on the power supply
lead in compliance with the relevant safety
standards;
• connect the machine to its own electrical
connection - A, Fig. 2 - and fit a differential
safety circuit-breaker with 30 mA residual
current;
• t fuses to protect the power supply line,
rated as indicated on the general wiring
diagram in this manual;
• connect the machine to an industrial
socket; the machine must not be connected
to domestic sockets.
A
2
Make sure the available pressure and the rendered capacity of the compressed air system
are compatible with those required for correct machine operation - see the “Technical Data”
section. For correct machine operation, the compressed air supply line must provide a
pressure range from no less than 8.5 bar to no more than 16 bar and guarantee an air flow
rate greater than the average consumption of the machine, which is equal to 160 Nl/min.
For correct equipment operation, the air produced must be suitably treated (not
above 5/4/4 according to ISO 8573-1)
NOTICE
An effective grounding connection is essential for correct operation of the machine.
NOTICE
1
