Corghi Artiglio Master Code - 3.1 Installation

22 Artiglio Master Code User Manual
3.1. INSTALLATION

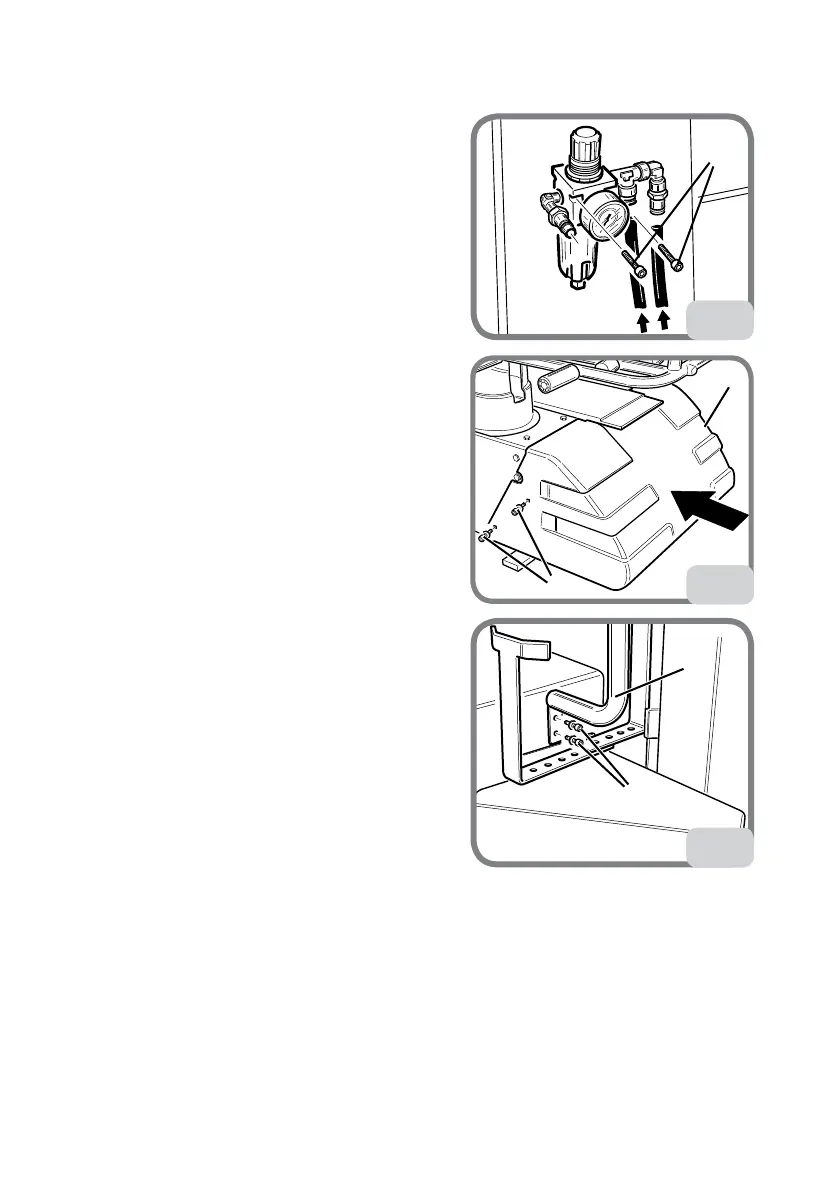

- Remove the filter unit from the packing;
- Secure the filter unit to the tyre changer chassis
using the 2 screws provided (A Fig. 7);
- Connect the 2 pipes to the unions (see Fig. 7);
- Assemble the front motor guard (A, Fig. 8) with
the screws and washers (B, Fig. 8);
- Assemble the handle support (A, Fig. 9) with the
screws and washers (B, Fig. 9);
- Assemble the bottom and top rear semi-cover (A, F Figs. 10-11) with the screws and
washers (B,G, Figs. 10-11), making sure the cables (C, D, E) are in their proper place;
9
A
B
8
A
B
A
7
