Artiglio Master Code User Manual 17
UK
1.2.d TECHNICAL DATA
- Tyre types processed .CONVENTIONAL - LOW PROFILE - RUN FLAT - BALOON BSR
- Wheel dimension range:
• rim diameter ................................................................................................ from 13” to 32”
• maximum tyre diameter ....................................................................................... 1200 mm
• maximum tyre width ..................................................................................... 400 mm (16”)
- Turntable:
• automatic positioning in relation to .......................................................................... tools
• resting side ................................................................................................................flanged
• centring ..................................................................................................................... on cone
• automatic ............................................................................................................... clamping
• drive system .......................................................................... 2-speed motor-inverter unit
• rotation torque ........................................................................................................ 1200 Nm
• rotation speed ........................................................................................................7-20 rpm
- Wheel lifter:
• lifting capacity ...............................................................................................................85 kg
- Power supply:
• electric 1Ph ....................................................................................... 230V-0.98 kW 50/60Hz
• electric 1Ph (alternative) ................................................................ 110V-0.98 kW 50/60Hz
• compressed air operating power: .......................................................................8 -10 bar
• Min. air operating ow: ..................................................................................... 160 Nl/min
- Weight ..........................................................................................................................595 kg
- Weight of electric/electronic parts .................................................................................49 kg
- Noise level:
• Weighted sound pressure level A (L
pA
) in the work place ........................... < 70 dB(A)
The noise levels indicated correspond to emission levels and do not necessarily represent safe
operating levels. Although there is a relationship between emission levels and exposure levels,
this cannot be used reliably to establish whether or not further precautions are necessary. The
factors which determine the level of exposure to which the operator is subject to include the
duration of the exposure, the characteristics of the workplace, other sources of noise, etc. The
permitted exposure levels may also vary according to the country. However, this information
will enable machine users to make a more accurate assessment of hazards and risks.
1.2.e. AIR PRESSURES
The machine is equipped with an internal pressure limiting valve to minimize the risk of
over inflating the tyre.

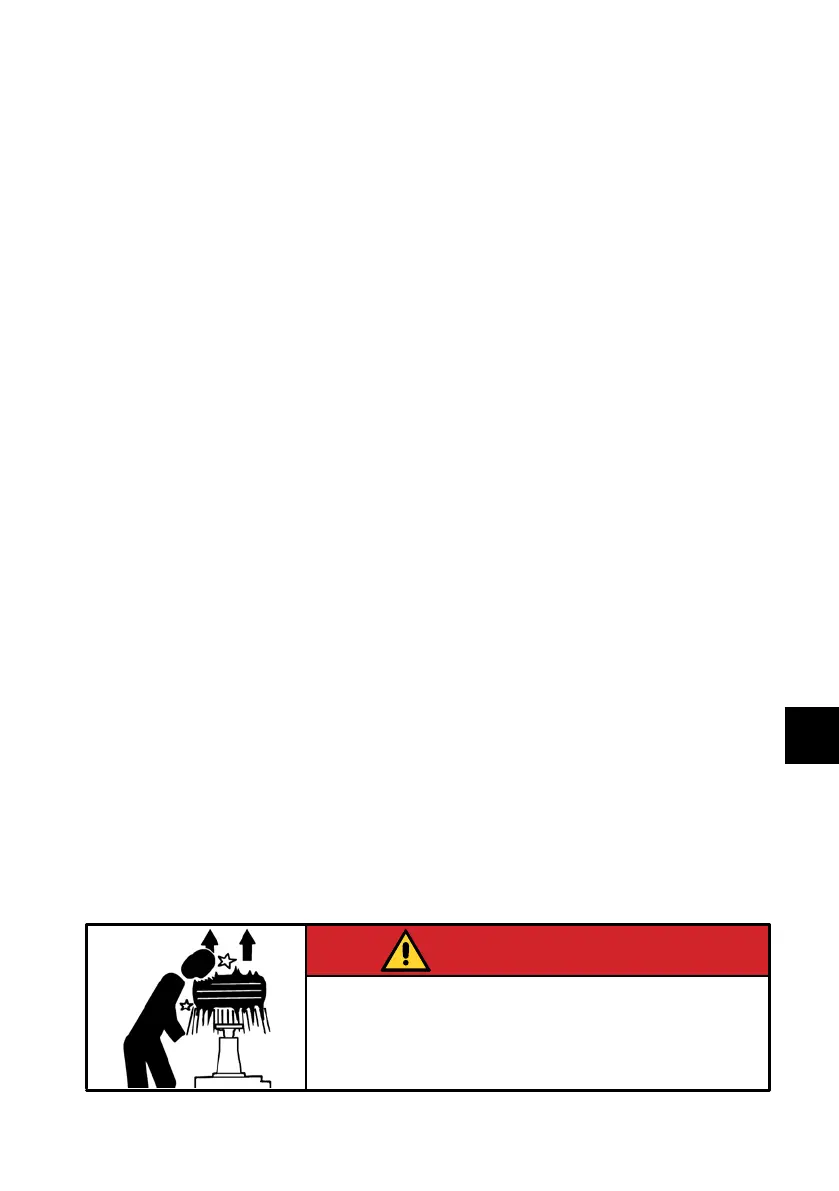

• EXPLOSION HAZARD
• Never exceed the tyre pressure recommended by the tyre
manufacturer. Never mismatch tyre size and rim size.
• Avoid personal injury or death
DANGER
