3. HOISTING/HANDLING

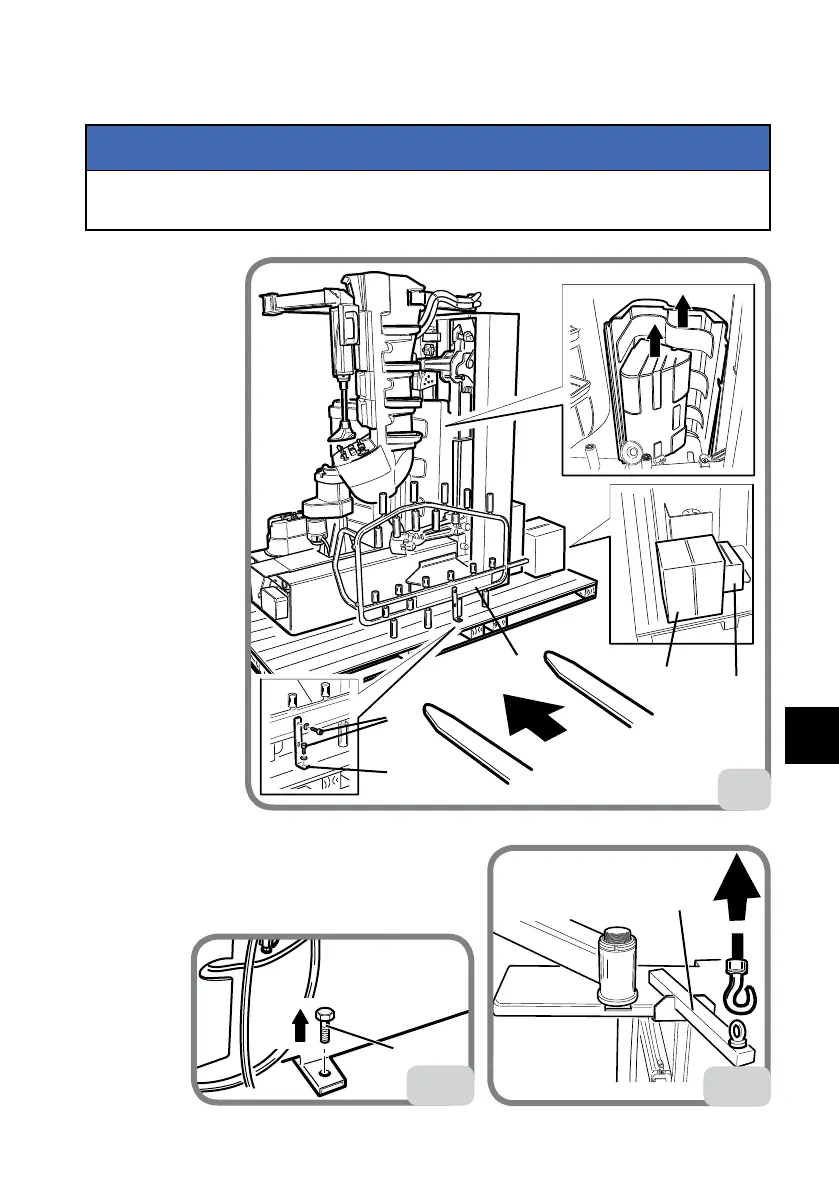

Before removing the machine from the pallet, make sure the items shown below
have been removed from the pallet .
NOTICE
- equipment (A
Fig. 4)
- wheel lifter (B Fig.
4) by removing the
bracket (C Fig. 4),
screws and wash-
ers (D Fig. 4)
- filter (E Fig. 4)
- front motor guard
and two rear semi-
covers (G Fig. 4)
To lift the machine from the pallet, remove the
screws from the fixing feet (A Fig. 5) and secure it
using the hoisting bracket (B Fig. 6).
