72 Artiglio Master Code User Manual
If the tyre is over-inflated, air may be removed from
the tyre by pressing the brass manual air release
button located below the air pressure gauge.
Disconnect the inflation hose from the valve stem.

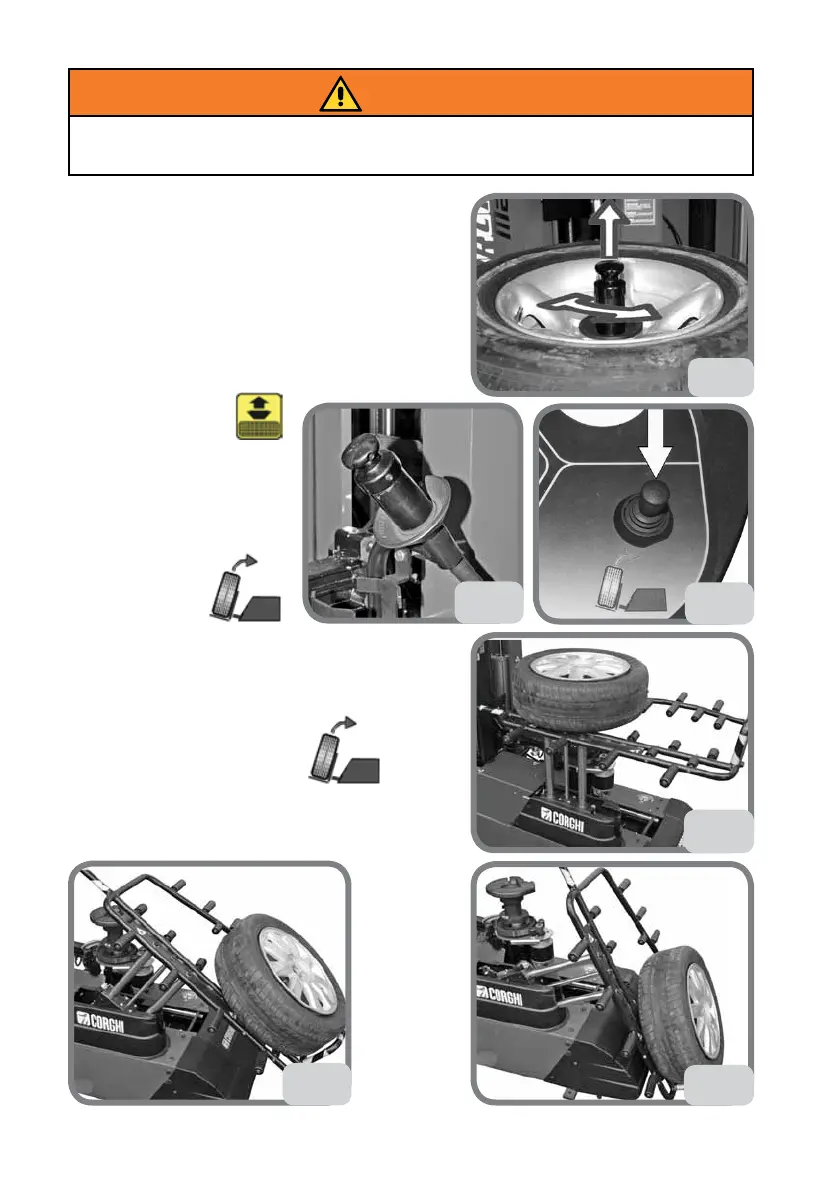

5.8. UNCLAMPING AND UNLOAD-
ING THE WHEEL
Operate the Pedal
until the wheel unlocks.
Turn handle 1 anticlockwise
by 90° and remove (Fig. 51).
Put the handle in its seat
(Fig. 51a).
Operate the Lever
(Fig. 51b) and lift the wheel
from the wheel support plate (Fig. 51c).
Move the wheel to the left, until it rests on the
frame (Fig. 51d).
Continue to operate the Lever until the
lifter is on the ground (Fig. 51e).
Unload the wheel from the lifter and move it away
from the work area.
51e
51d
51
51c
51b
51a
EXPLOSION HAZARD. Never mount a tyre on a rim that is not the same diameter
(e.g., 16 1/2 inch tyre mounting on a 16 inch rim).
WARNING
