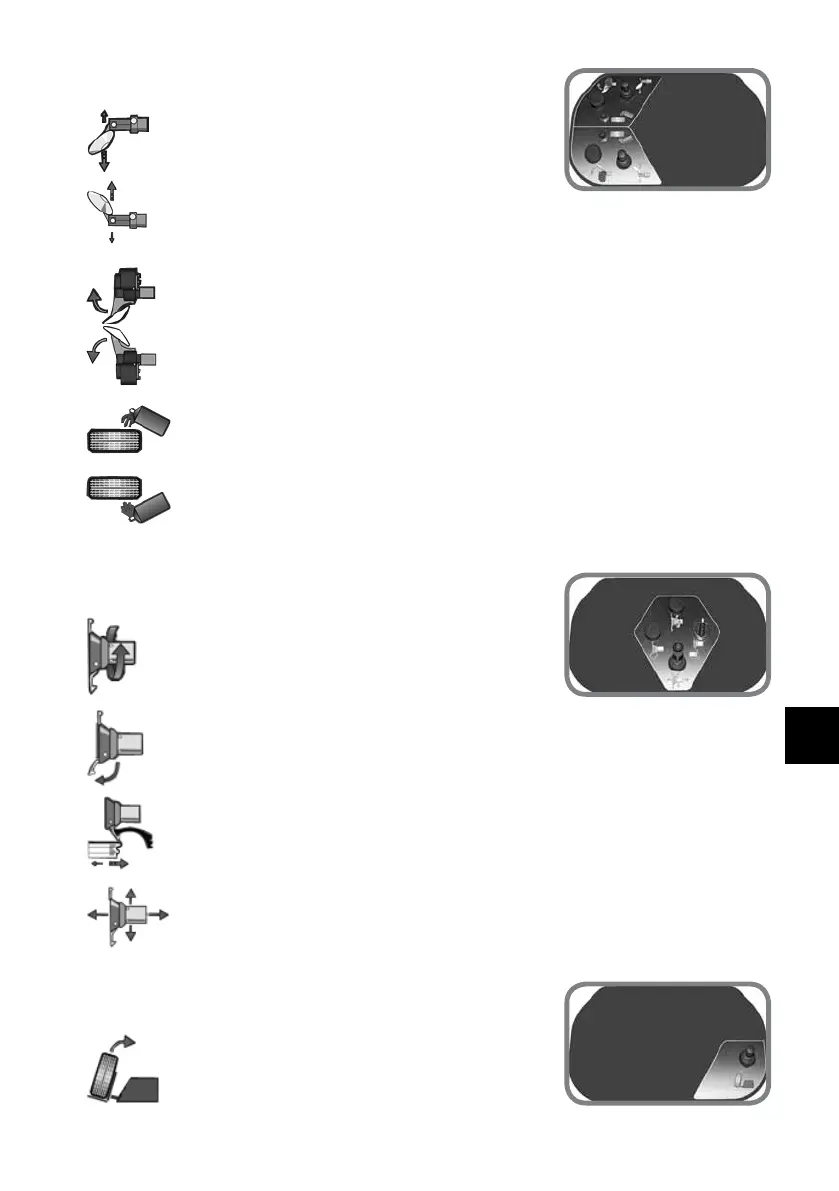

Area A – Bead breaker disc unit functional controls
1 - Operating lever for upper bead breaker disc
vertical movement.
2 - Operating lever for lower bead breaker disc
vertical movement.
3 - Button for upper bead breaker disc penetration
4- Button for lower bead breaker disc penetration
5- Upper bead lubricator button
6- Lower bead lubricator button
Area B – Tool head functional controls
7 - Head rotation operation button 180°
8 - Button to operate the movable tool to select the upper bead
9 - Selector to operate the movable tool for upper bead demounting
10 - Head movement control lever
Area C – Lifter unit functional control
11 - Lifter operating lever
