PINCH POINT - MOVING PARTS, Risk of Crushing Injury.
Do not keep hands on the handle or cone during clamping
See the section “TABLE FOR USING CENTRING AND CLAMPING ACCESSORIES
ACCORDING TO RIM TYPE” in this manual.
NOTICE
- Operate the Pedal until the wheel locks.
When working with “easily deformable” rims (i.e. a
central hole with thin, projecting edges - see Fig. 27) we
recommend using the appropriate universal flange for
special rims code 8-11100087 (see the section “TABLE
FOR USING CENTRING AND CLAMPING ACCESSORIES
ACCORDING TO RIM TYPE” on this manual).
Deciding from which side of the wheel the tyre must
be demounted

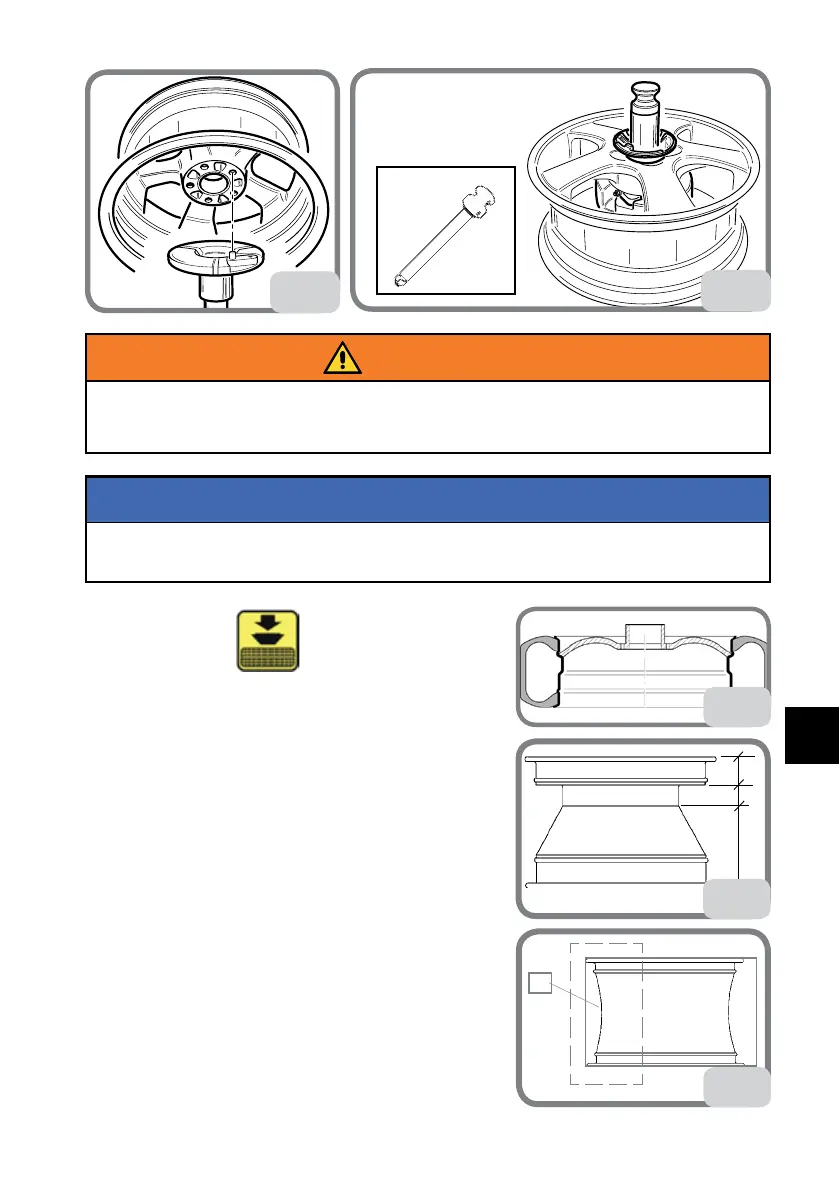

See Fig. 28. Find the position of rim well A on the wheel
rim. Find the largest width B and the smallest width C.
The tyre must be mounted and demounted with the
wheel on the turntable with the smallest width side C
facing upwards.
Special wheels
Alloy rim wheels: some alloy rim wheels have minimal
rim wells A or no rim wells at all - Fig. 29a. These rims
are not approved by DOT (Department of Transporta-
A
B
C
28
27
A
29a
WARNING
