cate tyre beads, as described in this manual in the sec-
tion on bead breaking. Any other use is inappropriate.
Topping up lubricating fluid
To top up fluid, unscrew the cap (1, Fig. 78) and remove
the cover underneath.
Only use lubricating fluid recommended by CORGHI
(contact your authorised dealer).
Check the fluid level in the tank.
If below the outlet, top up (see Fig. 78a).
If the machine or lubrication system is not used for a long time, the nozzles could
become obstructed. In this case, replace the nozzles.
NOTICE
TROUBLESHOOTING
When pressing button 5 or 6 on the console (Fig.
78b), no liquid comes out of the sprayer:
Sprayer nozzle obstruction
- Replace the nozzle
No lubricating fluid in the tank
- Top up the liquid
Electrical system problems
- If the problem persists, contact technical as-
sistance.
When pressing button 5 or 6 on the console (Fig.
78b), the jet is irregular:
Sprayer nozzle obstruction
- Replace the nozzle
INSTRUCTIONS FOR REPLACING NOZZLES
DEMOUNTING
- Loosen the two fastening nuts and remove cover
1 (Fig. 78c).
- Detach the fluid delivery tube 2 (Fig. 78d) near
the nozzle.
- Loosen the two screws 3 (Fig. 78d).
- Turn the mobile metal sheet 4 (Fig. 78d) and
remove the nozzle.

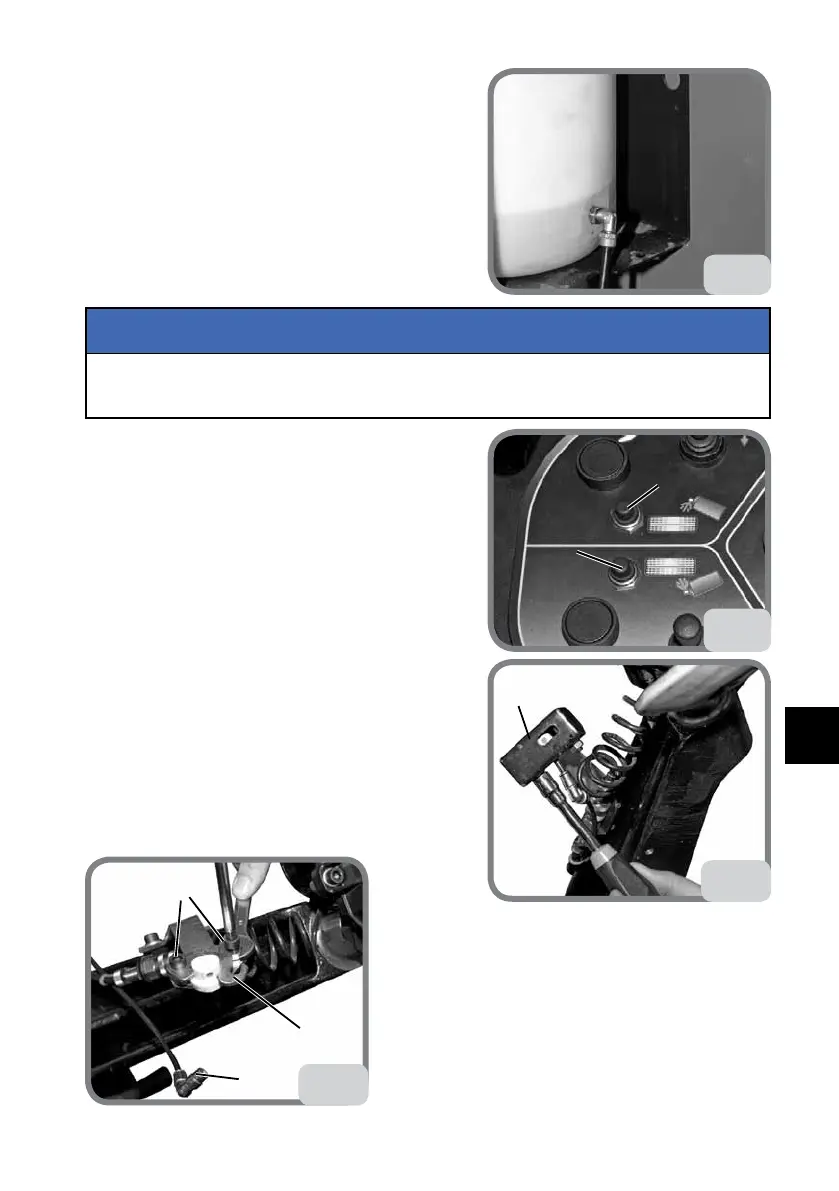

78a
78b
5
6
78c
1
78d
2
3
4
