The status of the electrovalve determines whether the colorant is discharged (dispensed) or
returned to the canister (recirculation).
The lower compartment of the dispensing section also contains the gear motor (4) that drives the
pumps, and the control electronics that allow the machine to run at a steady speed during
dispensing operations.
Product is prevented from drying in the nozzle center area by a humidifier cap.
The structure of the dispensing section has been designed to allow the computer, monitor and
keyboard to be housed on the machine. An auxiliary support plate for the computer may be
requested as an optional.

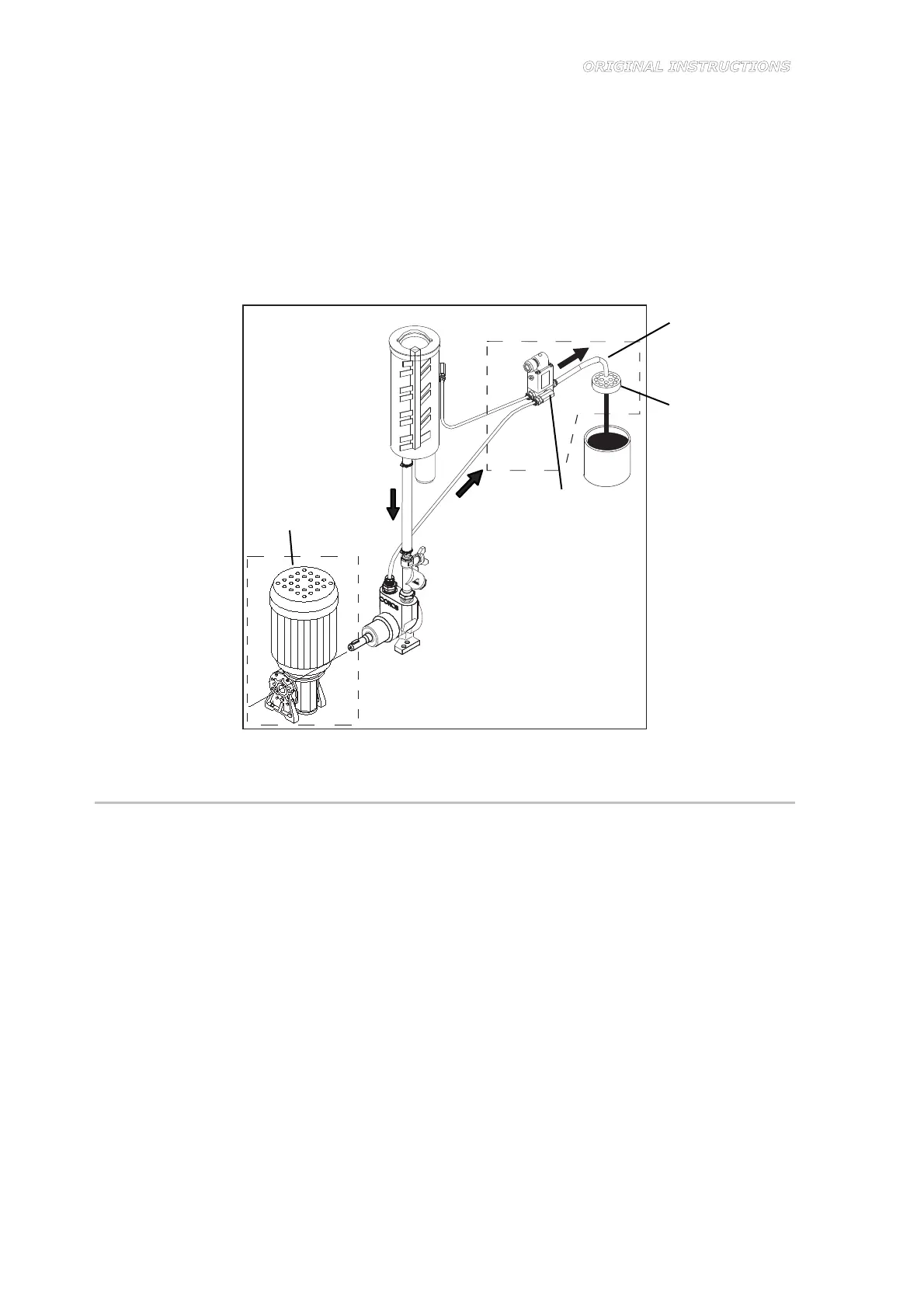

Figure 3-4
3.2.3 Shelf for can positioning
COROB™ TATOCOLOR features an internal dispensing center, which includes the dispensing area
and can handling system built into the machine chassis.
The shelf is a system that allows to raise the can and place it correctly in correspondence with the
dispensing nozzles.
The cans, of different sizes, containing the base product to be colored are loaded and positioned
by a manual shelf (1) (Figure 3-5) fixed to the machine that can be raised or lowered by the
operator.
The shelf is provided with a locking handle (3) (Figure 3-6) that must be pulled to release the
shelf and allow it to be moved to the desired height. Once you have reached the desired height,
release the handle to lock the shelf in place, allowing you to rest the can on it.
The check of can presence is carried out by the photocell (2) (Figure 3-5), placed at the
appropriate height in the dispensing area (only when automatic sliding cap is present).
3
4
1
2
