6-START-UP 6-1
COROB™ TATOCOLOR
6 START-UP
6.1 General warnings
The machine is manufactured according to various electrical power standards (see technical
specifications). The type of power supply is indicated on the identification plate.
THIS EQUIPMENT MUST BE GROUNDED.
Check the grounding of the power supply system before connecting the machine.
The computer and any other devices connected to the machine via a serial line or
connected to the computer itself must be powered via the auxiliary sockets.
Do not use extension cords to power the machine. Do not use multisockets to connect
other equipment to the same socket that powers the machine.
Do not attempt to power the machine from a source having specifications other than
those listed on the identification plate.
The machine is isolated from the power supply line when the power cable is disconnected;
it must therefore be installed near an easily accessible mains socket outlet.
Do not use multisockets to connect other equipment to the machine auxiliary sockets.
The machine is equipped with a power supply cable having the following specifications: length 2,5
m, cross-section 3 x 1 mm².
The power supply cable conductors are color-coded as follows:
GREEN/YELLOW = GROUND BLUE = NEUTRAL BROWN = LINE
6.2 Electrical connection and start-up

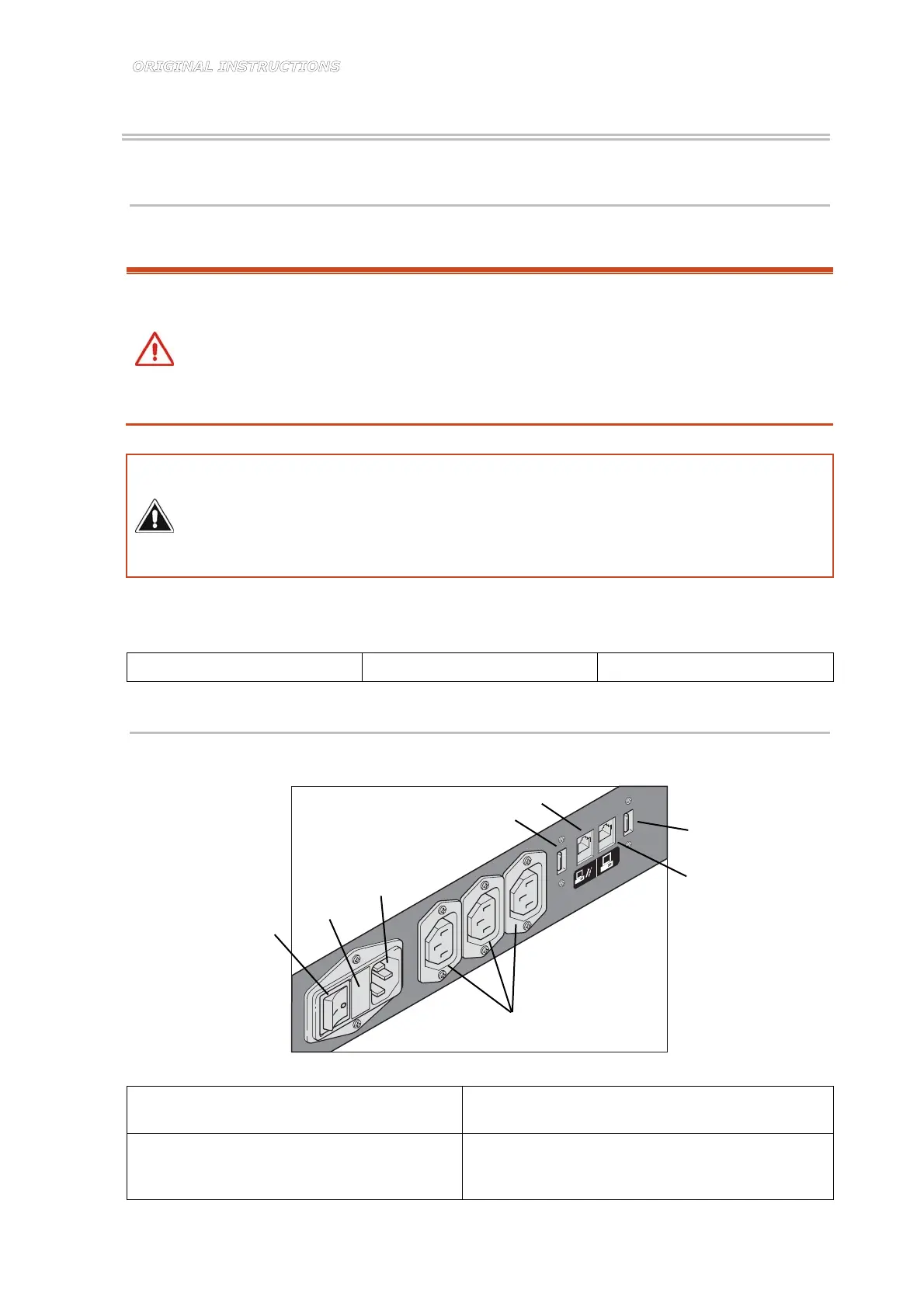

The following are present on the REAR DOOR of the machine dispensing section (Figure 6-1):
Figure 6-1
Machine main switch (1)
In ON position (I), the machine is powered. In OFF
position (O), the power is cut off to the machine.
Fuse compartment (2)
The two fuses protect the line and neutral in the
electrical socket; the value is shown in the
technical specifications table.
1
2
3
4
5
6
7
8
