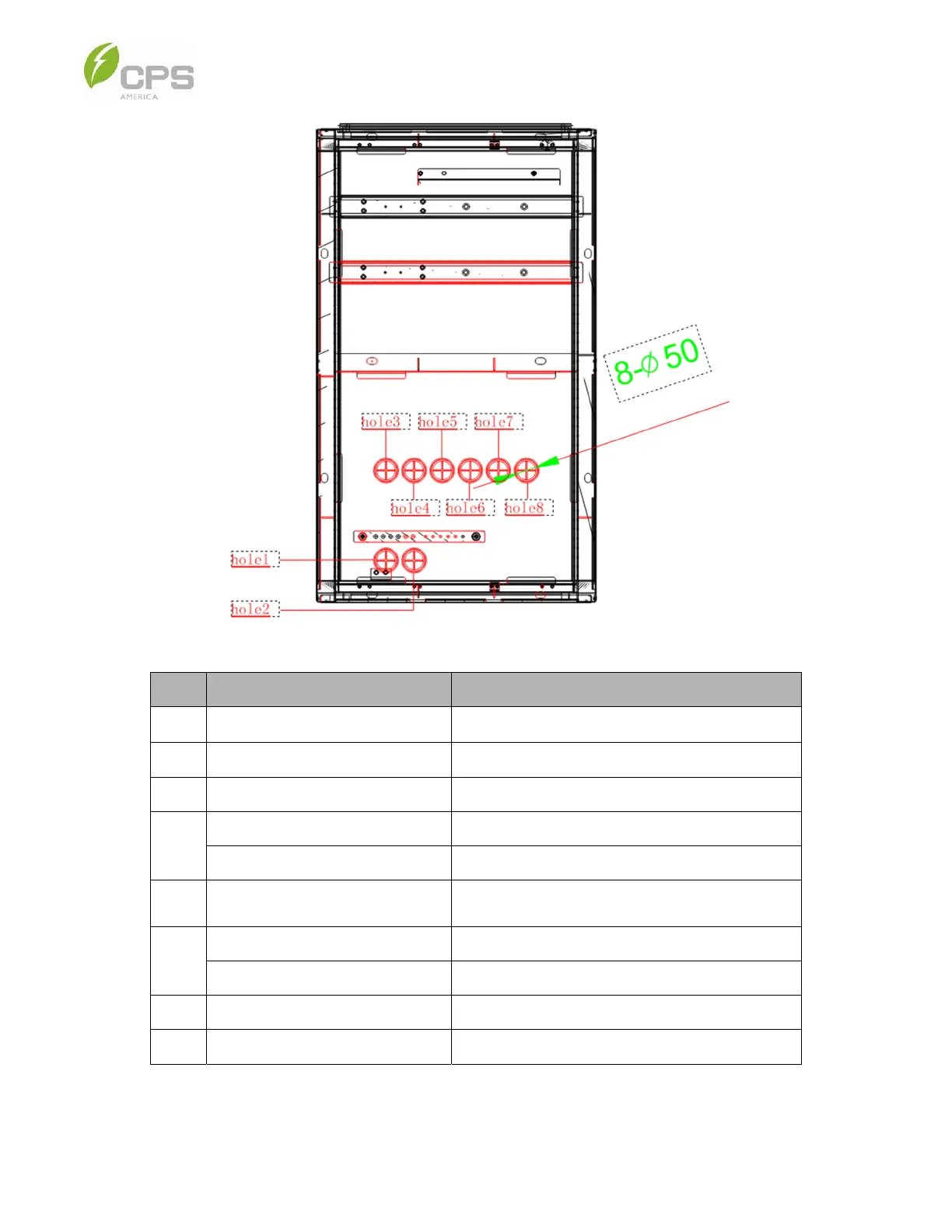

Table 5-1 Cable Wiring
Hole Cable Description
1 DC block communication cable #1
One JX3 communication cable
2 DC block communication cable #2
One JX3 communication cable
3 DC block power cable
P+ and P- positive power cable
4
DC block auxiliary power cable #1
One JXH1 cable
Ground cable
One ground cable
5 AC power cable
Three 150mm
2
(300 MCM) cable,
conduit needs 2.17 in (55 mm) diameter or larger
6
DC block auxiliary power cable #2
One JXH1 cable
Ground cable
One ground cable
7 DC block power cable #2
P+ and P- positive power cable
8 Networking cable
Three networking cables
