Introduction 5
Hardware Configuration Options
For specific installation instructions, see “Setting Up the AlterPath PM” on
page 26.
Daisy-chained Configuration
In a daisy-chained configuration, multiple slave PMs are connected to one
another and managed by a single master PM. The PMs are linked together
with RJ-45 cables connected to one PMs OUT port and the other PM’s IN
port. This example shows four AlterPath PMs operating in a daisy-chained
environment. PM #1 is connected to the local work station and is the “master”
PM, while the other three PMs are “slaves.”

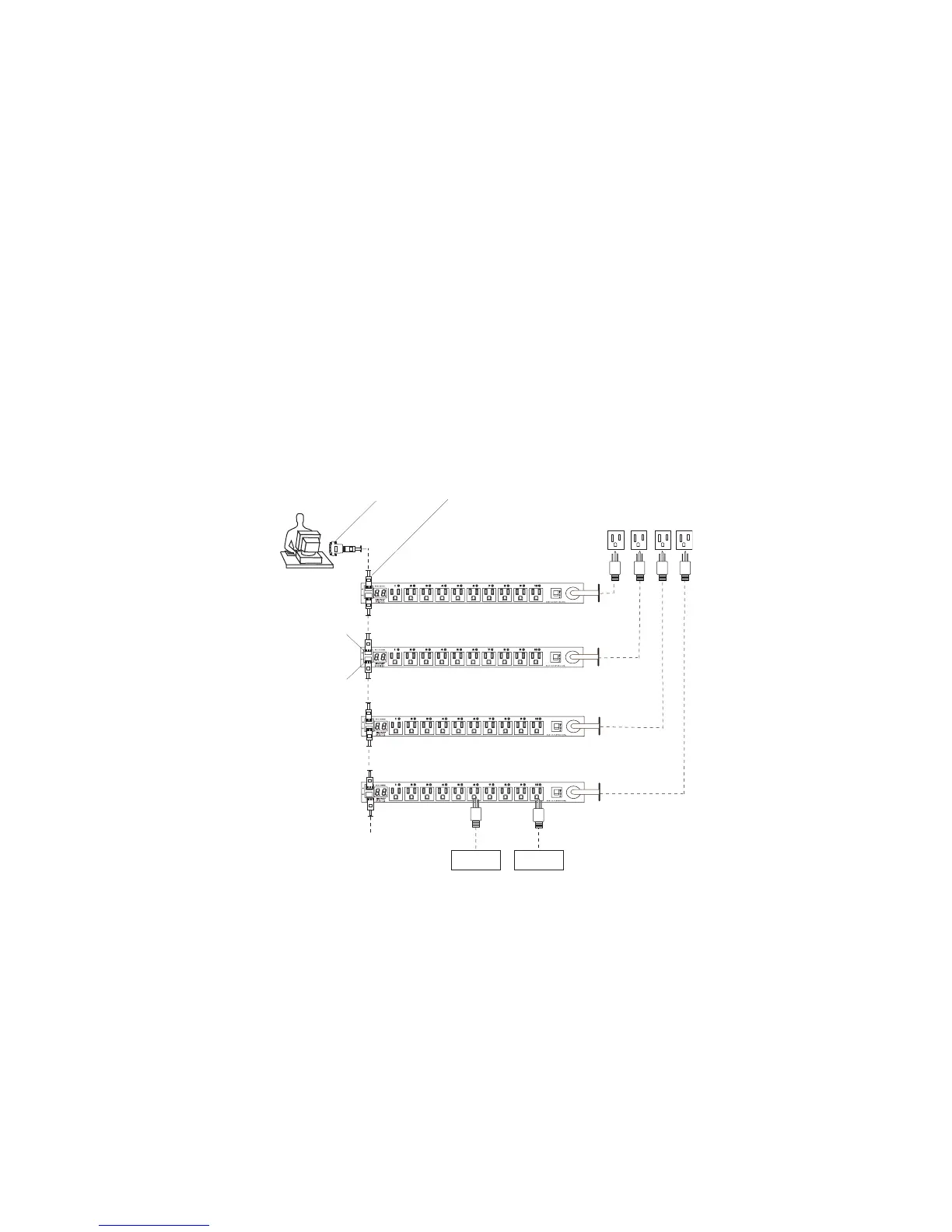

Figure 1-2: Daisy-chained Configuration
Additional AlterPath PM with
up to a total of 128 outlets
can be daisy-chained
Power Source
User
Server Switch
PM #2
PM #1
PM #3
PM #4
IN port
RJ-45 cable
RJ-45 to DB-9F adapter
OUT port
