Setting Up the AlterPath PM
30 AlterPath PM Installation, Administration, and User’s Guide
Note: The suggested minimum screw size for wall-mounting the AlterPath PM units
is #10 (4.8 mm or 0.19 in or 3/16 in) or larger. The RJ-45 cable included in the
AlterPath PM package is minimum flame rated VW-1 or FT-1 and has a
maximum length of 10 feet (3 meters).

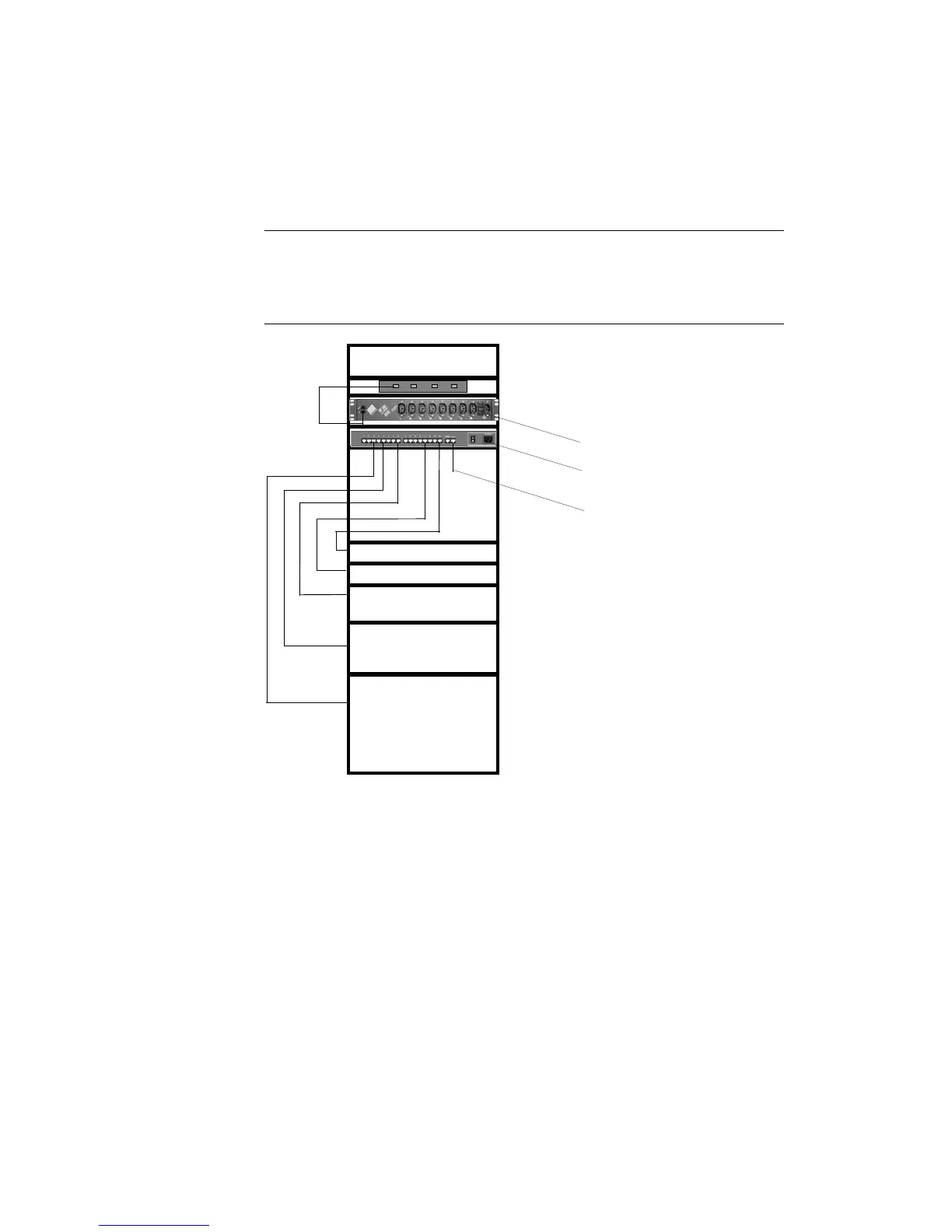

Figure 2-12:Rack Mount for the AlterPath PM8i
PM8i, PM10 or PM10i
AlterPath ACS or
Cyclades TS
Ethernet
Router
Switch
UNIX server
PBX
UPS
Nodes
