Models and Components
16 AlterPath PM Installation, Administration, and User’s Guide
AlterPath PM20i
The AlterPath PM20i has the following features:
• One of the following power plugs:
• 240VAC/16A power plug (IEC320-C20)
• 240VAC/20A power plug (IEC320-C20)
• Twenty 240VAC/10A power receptacles (IEC320-C13)
• 240VAC/20A supplementary protector with a “press to reset” function on
the L30A models
• 240VAC/15A branch circuit breaker with accidental-off protected feature
(30A model)
• Vertically (0U) mounting

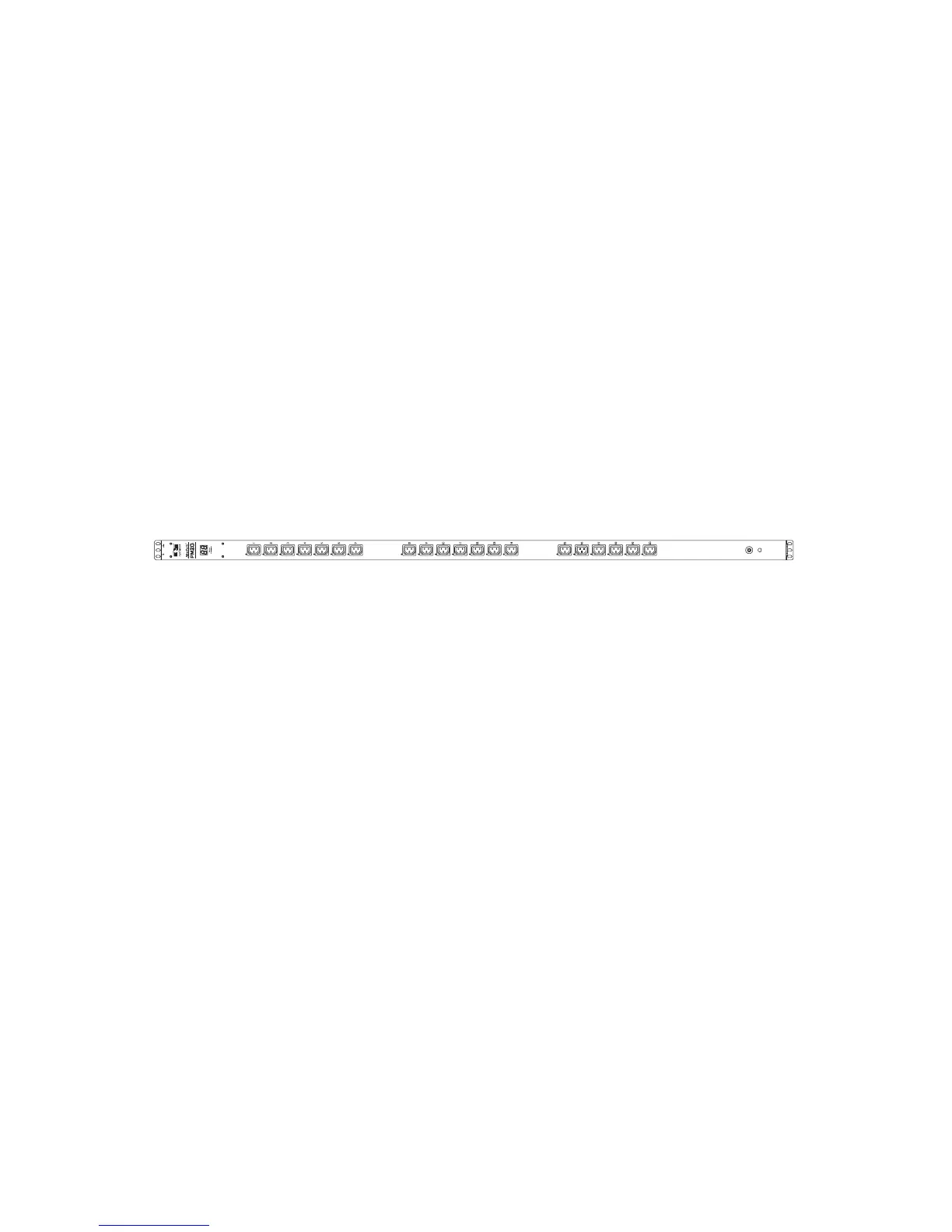

The following graphic depicts the AlterPath PM20i.
Figure 1-10:The AlterPath PM20i
