36D-Link DSL-2750B Wireless N300 ADSL2+ Modem Router User Manual
Section 3 - Conguration

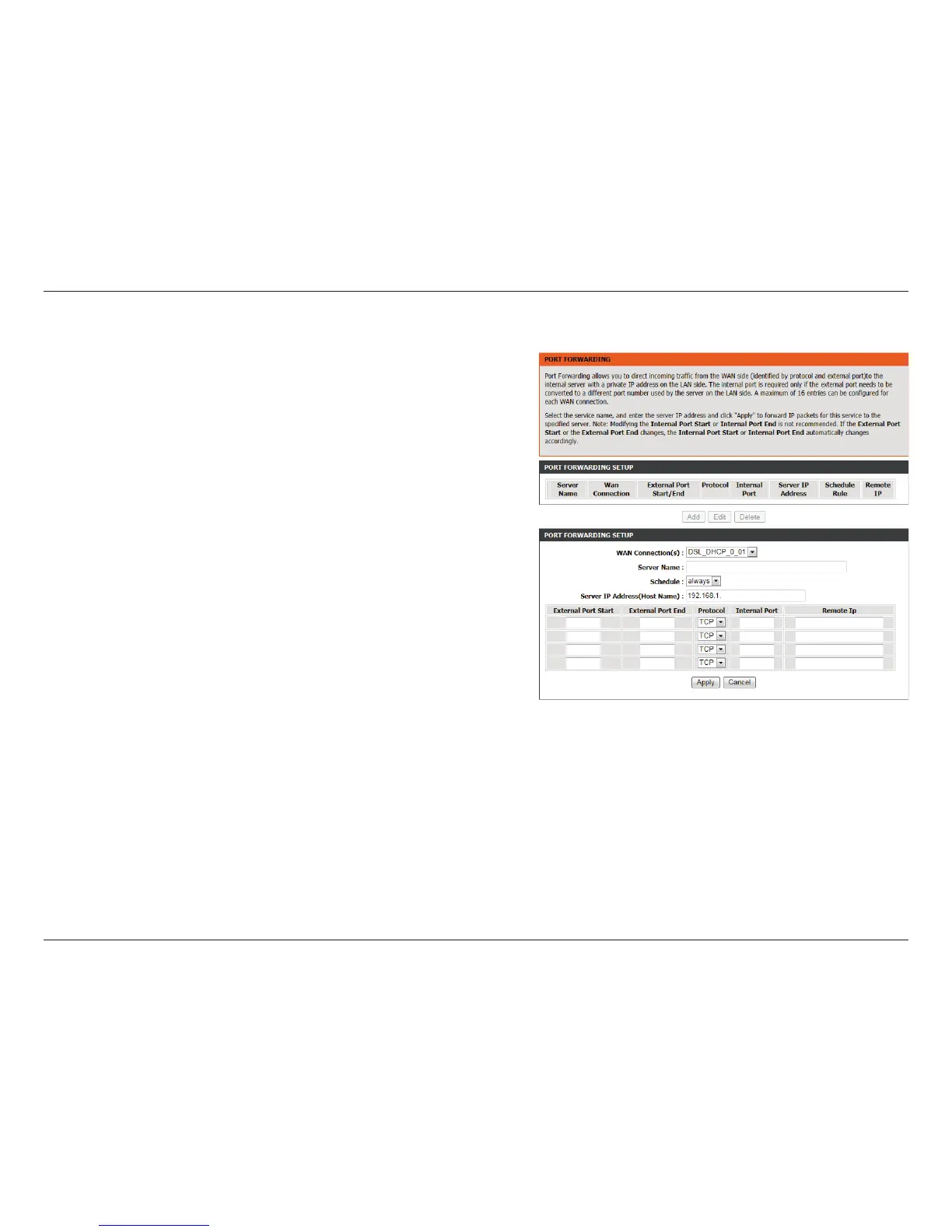

Port Forwarding
Port forwarding is a method to direct incoming trac to a particular
server on the LAN. Up to 16 port forwarding entries are supported.
Click Add, Edit, or Delete to reveal the Port forward setup options.
WAN
Connection:
Specify the WAN connection to use.
Server
Name:
Enter a name for the server or service.
Schedule: Select whether the port will always or never be forwarded.
Server IP
Address:
Enter the internal IP address for the trac to be forwarded to.
