57D-Link DSL-2750B Wireless N300 ADSL2+ Modem Router User Manual
Section 3 - Conguration

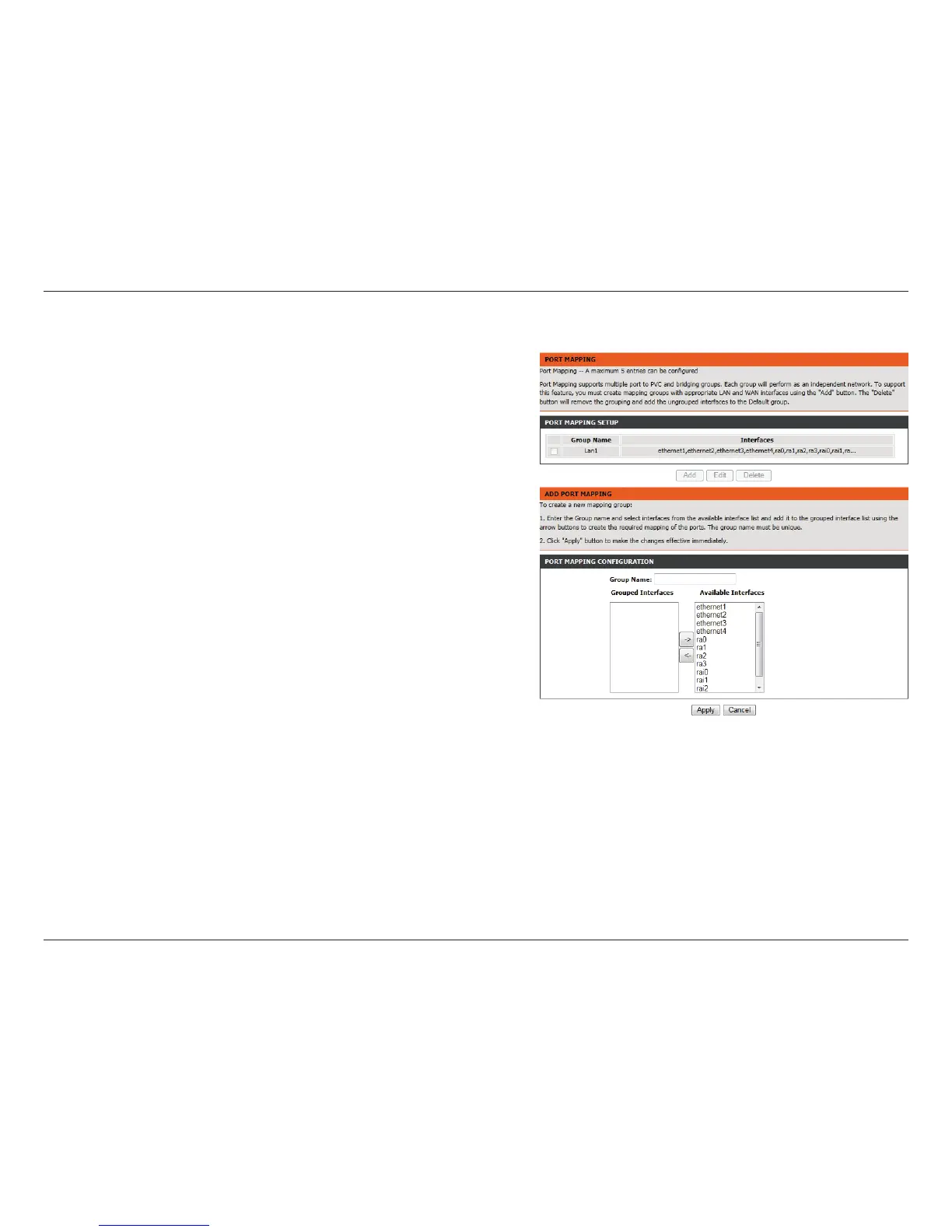

Port Mapping
This section enables you to bind the WAN interface and the LAN
interface to the same group. This allows remote computers to
connect to a specic computer or service within a private local-area
network (LAN).
Click Add to reveal the Port Mapping conguration options.
Group Name: Enter a group name.
Grouped
Interfaces:
Select from the listed interfaces from the Available Interface
then click the <- arrow button to add them to the Grouped
Interface list. This creates the required mapping of the ports.
The group name must be unique.
