18D-Link DSL-2750B Wireless N300 ADSL2+ Modem Router User Manual
Section 3 - Conguration

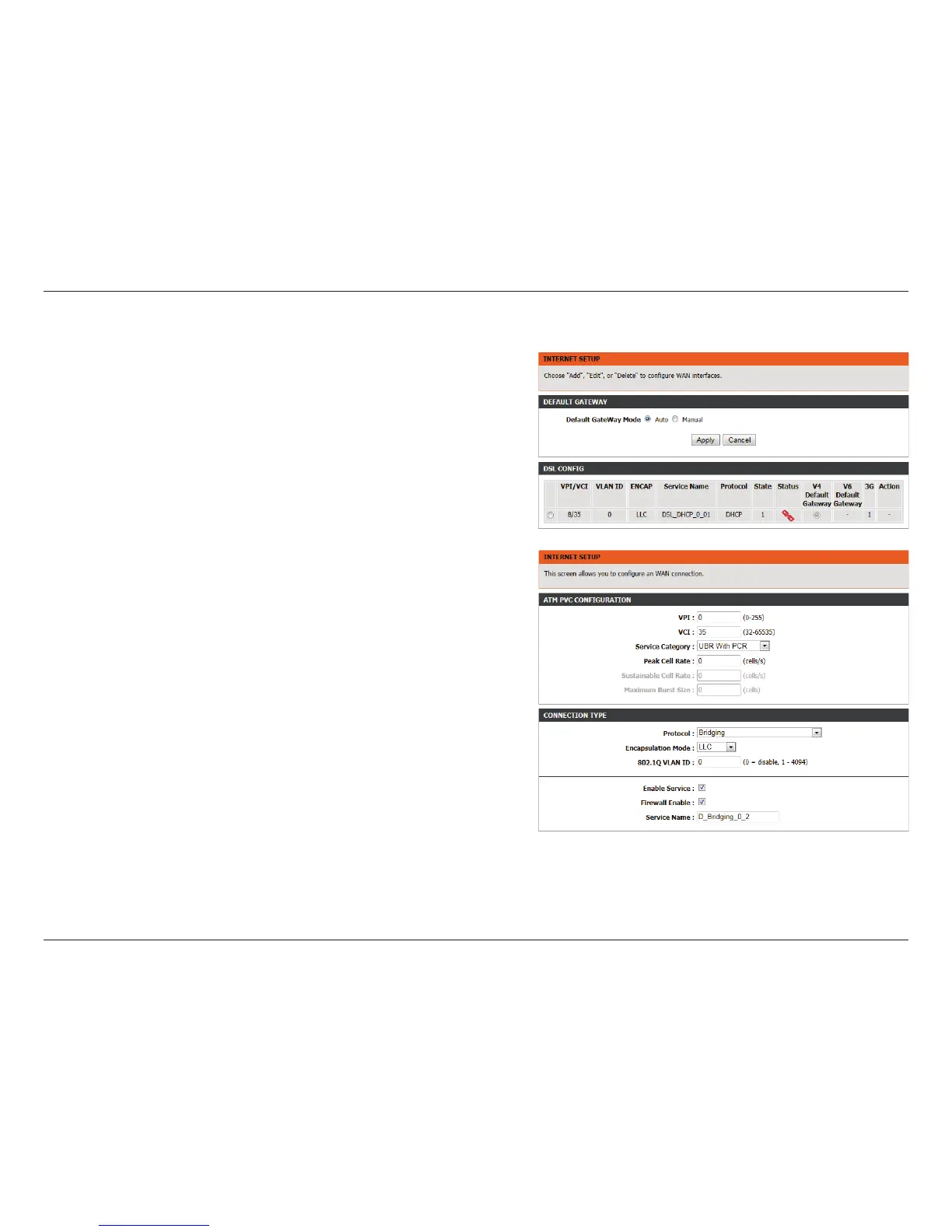

Internet Setup
Click Internet Setup on the left menu to congure your connection
manually.
If you want to congure your router to connect to the Internet using
the wizard, click Wizard on the left menu and you will be directed
to the Quick Setup Wizard.
Click the Add button to reveal the DSL conguration options, or click
Edit to change an existing conguration.
The following parameters will be available for conguration:
VPI:
Virtual path identier (VPI) is the virtual path between two
points in an ATM network. Its valid value is between 0 and
255. Enter the correct VPI provided by your ISP. By default, VPI
is set to 1.
VCI:
Virtual channel identier (VCI) is the virtual channel between
two points in an ATM network. Its valid value is between 1 and
65535. Enter the correct VCI provided by your ISP. By default,
VCI is set to 32.
Service
Category:
Select the Quality of Service types for this Virtual Circuit. The
ATM QoS types include CBR (Constant Bit Rate), VBR (Variable
Bit
Rate) and UBR (Unspecied Bit Rate). These QoS types are all
controlled by the parameters specied below, including PCR,
SCR and MBS.
Peak Cell Rate:
Peak cell rate (PCR) is the maximum rate at which cells can be
transmitted along a connection in the ATM network.
