DAB evoplus - Alarm Types and Error Resolution

ENGLISH
GB
35
Set-point reduction percentage 50 %
Type of external analogue signal 0-10V
Twin operating mode = Alternate every 24h
Pump start control EXT (from remote signal on input IN1).
7<3(62)$/$50

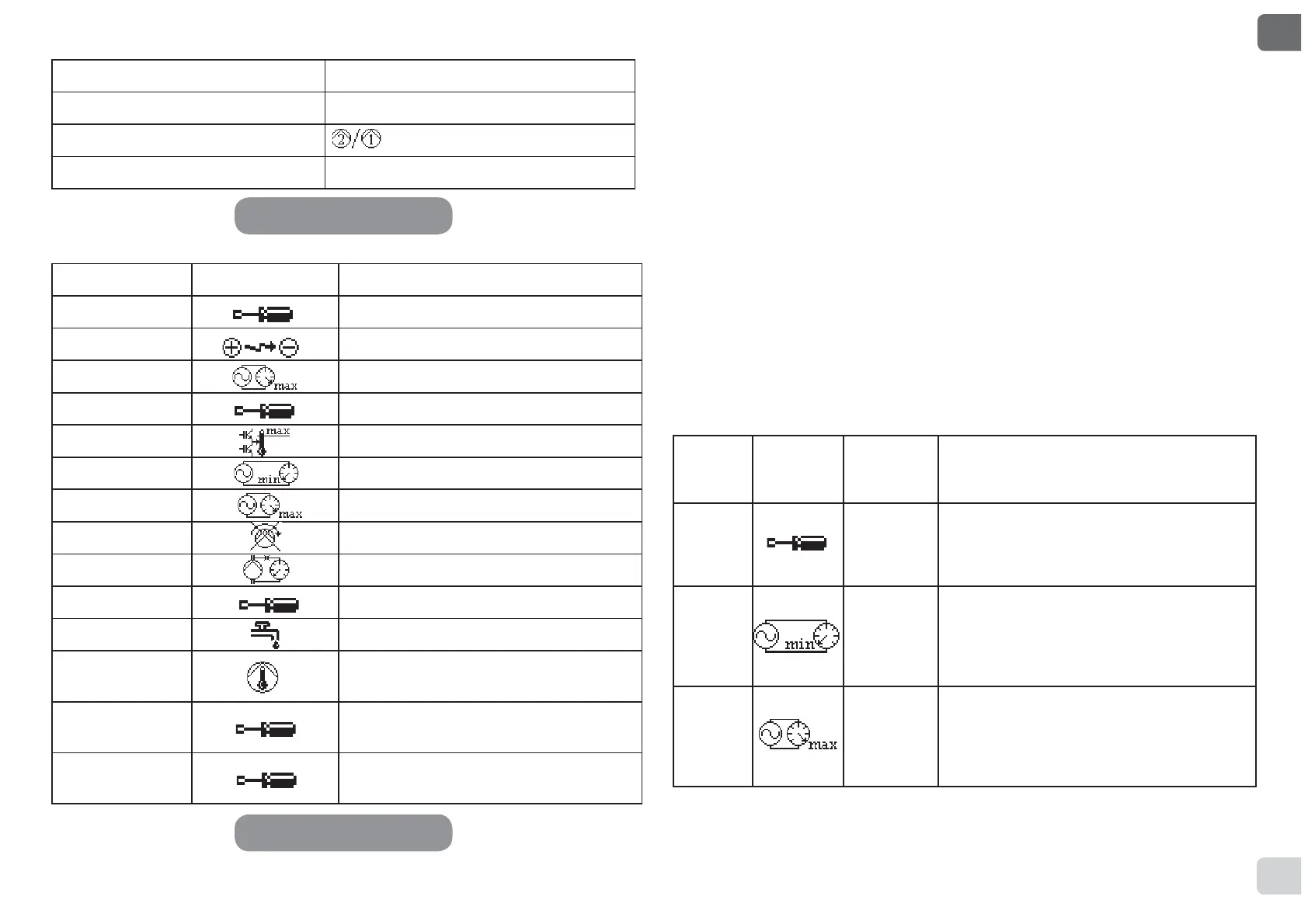

Alarm Code Alarm Symbol Alarm Description
e0 - e16; e21 Internal Error
e17 - e19 Short Circuit
e20 Voltage Error
e22 - e31 Internal Error
e32 - e35 Electronic system excess temperature
e37 Low voltage
e38 High voltage
e39 - e40 Pump blocked
e43; e44; e45; e54 Pressure Sensor
e46 Pump Disconnected
e42 Dry operation
e56
Motor excess temperature (motor
protector trips)
e57
Frequency of PWM external signal less
than 100 Hz
e58
Frequency of PWM external signal
greater than 5 kHz

Table 7: Factory settings














Tabella 8: Elenco allarmi
15. DISPOSAL
This product or any part of it must be disposed of correctly:
- Use public or private local systems for waste collection.
- If that is not possible, contact Dab Pumps or the nearest authorised
service workshop.
INFORMATION
Frequently asked questions (faq) on the ecodesign directive 2009/125/
ec establishing a framework for the setting of ecodesign requirements
for energy-related products and its implementing regulations: http://
ec.europa.eu/enterprise/policies/sustainable-business/documents/
HFRGHVLJQJXLGDQFH¿OHVBIDTBHQSGI
Guidelines accompanying commission regulations implementing the
ecodesign directive: KWWSHFHXURSDHXHQHUJ\HI¿FLHQF\HFRGHVLJQ
OHJLVODWLRQBHQKWPVHH³FLUFXODWRUV´
16. ERROR CONDITION AND RESET
Display
indica-
tion
Description Reset
e0 – e16
Internal
error
- Switch off system power.
- Wait for the warning lights on the control panel
to go off, then power the system again.
- If the error persists, change the circulator.
e37
Low mains
voltage
(LP)
- Switch off system power.
- Wait for the warning lights on the control panel
to go off, then power the system again.
- Check that the mains voltage is correct, if ne-
cessary reset it at the plate values
e38
High mains
voltage
(HP)
- Switch off system power.
- Wait for the warning lights on the control panel
to go off, then power the system again.
- Check that the mains voltage is correct, if ne-
cessary reset it at the plate values.



