1-8
SERVICE INFORMATION

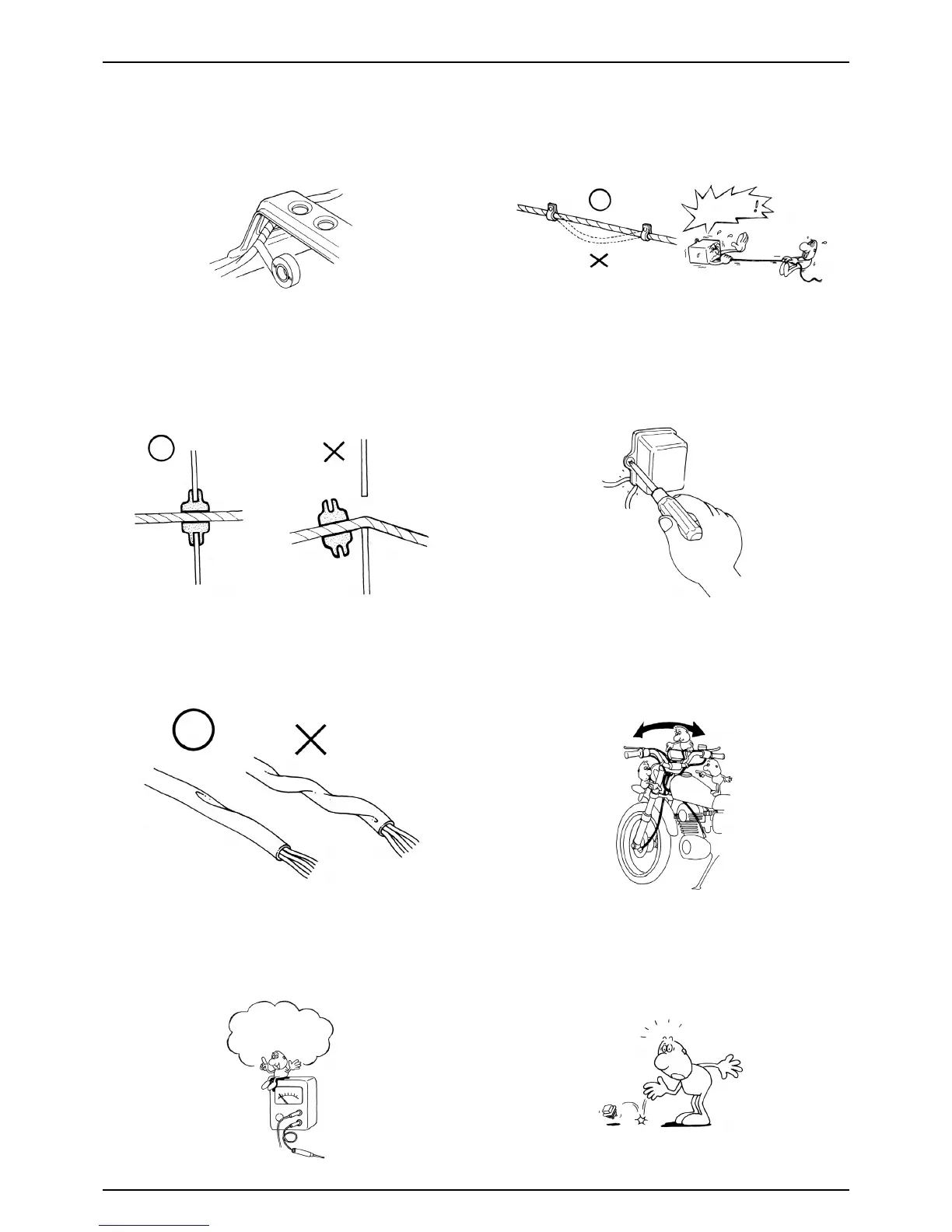

If necessary, lock the wire harness properly. When mounting parts, make sure that the wire harness
is not pressed by the parts.
In case that the wire harness is contacted with the end or
the sharp edge, protect both parts with tube or tape.
The wire must not hang down or be pulled excessively.
Do not twist the wire harness. Wire the wire harness not to be pulled or expanded
when the handle is turned to the right or the left
completely. Avoid excessive bending or chewing and
interference with the engine.
Prior to using the tester, please read the manual care-
fully and understand the contents.
When testing the resistance of the tester, the zero
adjustment must be performed before testing.
Do not drop or throw the parts especially
semiconductor contained parts because these parts may
be damaged by the impact of the drop.
NOT TO
PULL!
Is this
measurement range or
configuration in accord
with the manual?
