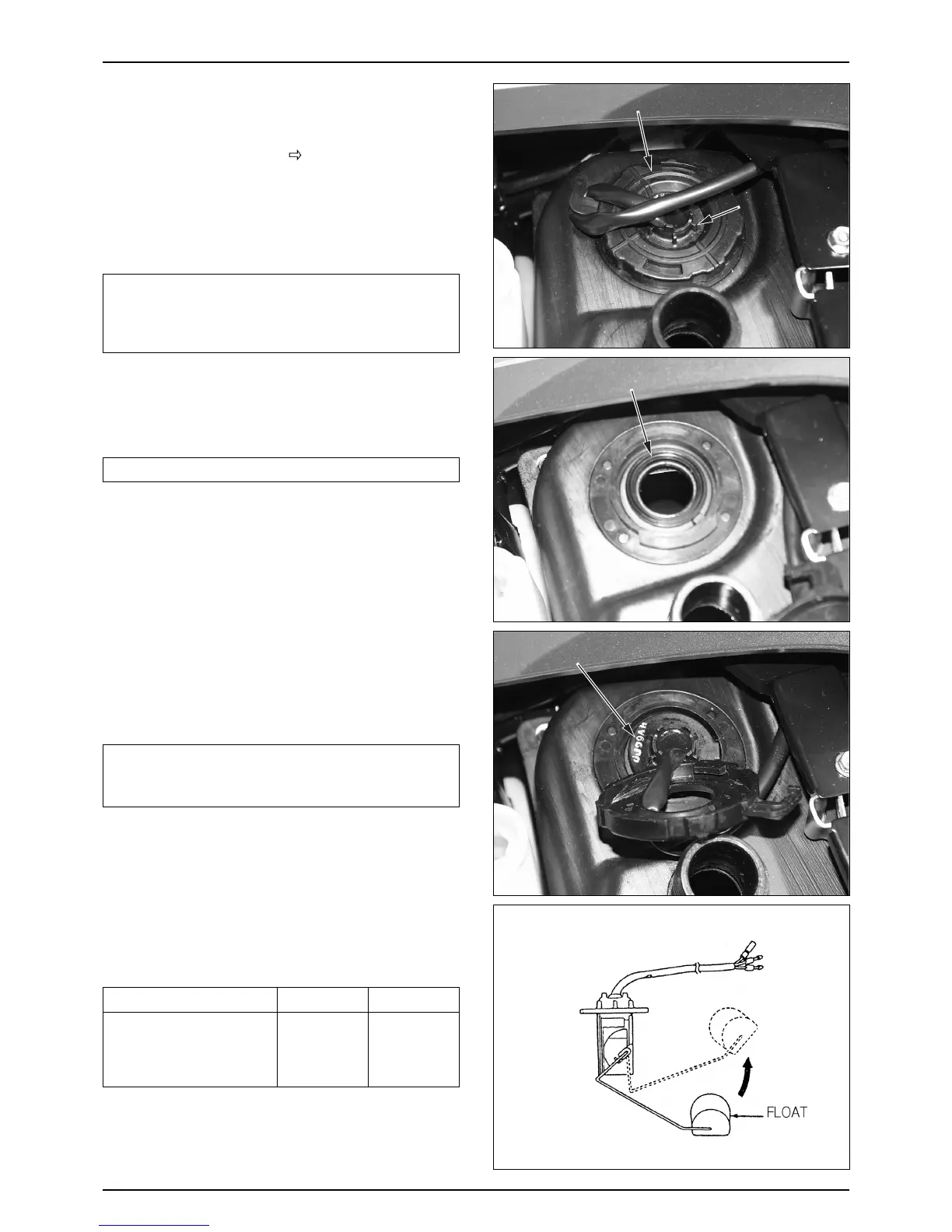

FUEL UNIT
REMOVAL
● Remove the luggage box. ( 3-3 )
● Remove the fuel unit wire from the wire harness.
● Turn the fuel unit fixing unit set cap comp to the left,
and remove it.
● Remove the fuel unit from the fuel tank.
NOTE
·Be careful of prevention the fuel unit wire from
damaging.
·When disassembling, be careful of prevention the
float arm from damaging.
● Remove the base packing.
NOTE
·Check for damage.
INSTALLATION
● Install the base packing to the fuel tank.
● Install the fuel unit.
NOTE
·Install it aligning the part of the fuel unit with the
loop part of fuel tank.
·Check the fuel leakage.
INSPECTION
● Move the float upward and downward, and measure
the resistance between the terminals.
● When the measured value differs greatly from the
standard value, replace the fuel unit.
16-2
